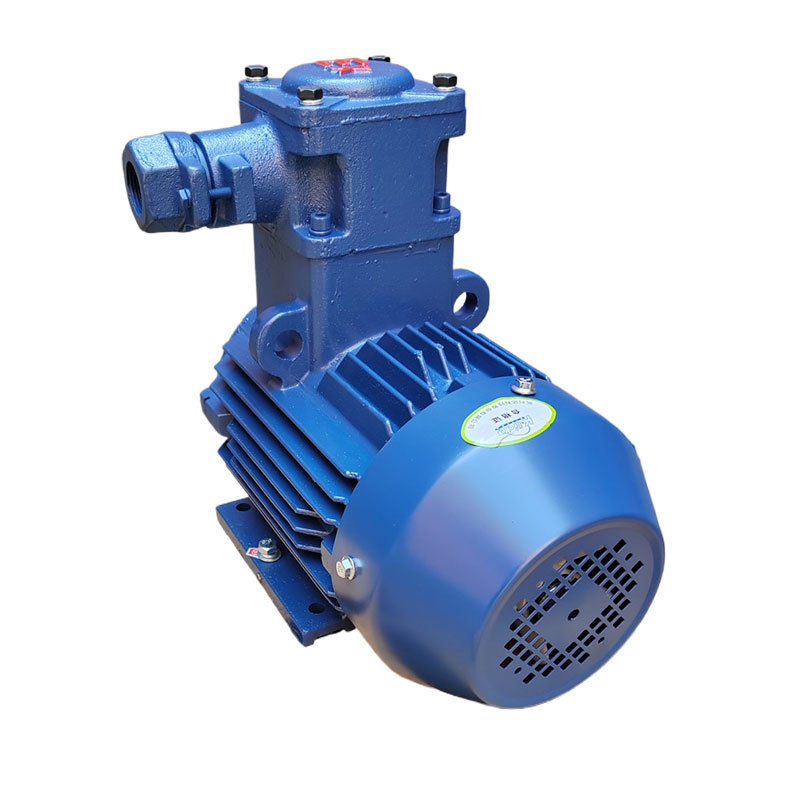

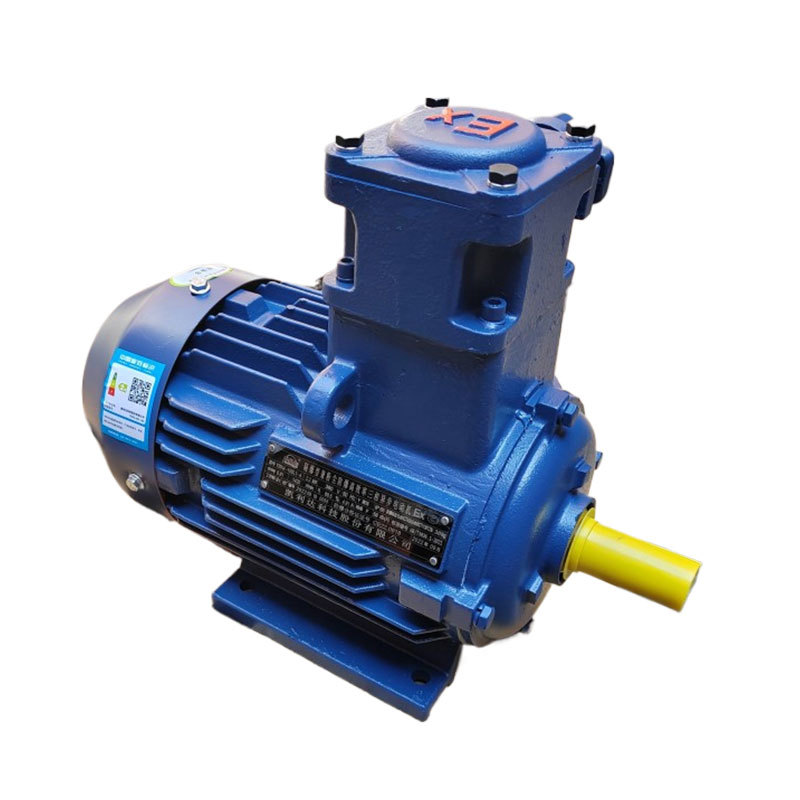

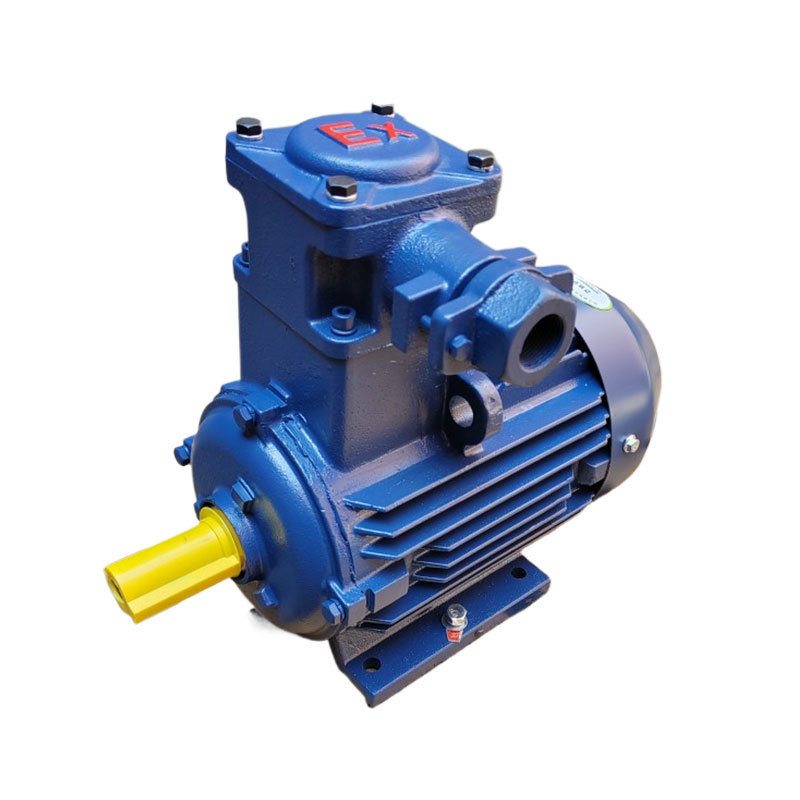

Commodity name: YBX4 Explosion proof Three phase Asynchronous Motor B

YBX4 SERIES THREE-PHASE ASYNCHRONOUS MOTORS

Outlet hole of Junction Box:

Junction box grading	Motor specifications	Maximum full load current	Dimension of outlet hole


1	H63-80	2.6	1XM30X2
2	H90-100	6.8	1XM30X2
3	H112-132	15.4	1XM30X2
4	H160-180	42.5	1XM36X2
5	H200-225	84.2	1XM48X2
6	H250-280	166.6	1XM64X2
7	H315	358	2XM64X2
8	H355	546	2XM64X2

Bearing type:

Frame number range	Extreme numbers	Shaft extension end		Non-shaft extension


		Vertical	Horizontal	Vertical	Horizontal

63	2.4.6.8	6201

71	2.4.6.8	6202
80	2.4.6.8	6204

90	2.4.6.8	6205
100	2.4.6.8	6206
112	2.4.6.8	6206

132	2.4.6.8	6208

160	2	6209		6209
	4.6.8	6309		6209
180	2	6211		6211
	4.6.8	6311		6211
200	2	6212		6212
	4.6.8	6312		6212
225	2	6312		6312

	4.6.8	6313		6312
250	2	6313		6313

	4.6.8	6314		6313
280	2	6314		6314

	4.6.8	6317		6314
315	2	6316		6316

	4.6.8	6319		6319


355	2	6319-C3	6319-C3	7319B	6319-C3

	4-10	6322-C3(NU322E)	6322-C3	7322B	6322-C3

400	2	NU219E+6219-C3	6219-C3²)	7219B²)	NU219E

	4-10	6326-C3(NU326E)	6326-C3	7326B	6326-C3

450	2	NU222E+6222-C3	6222-C3²)	7222B²	NU222E

	4-10	6328-C3(NU328E)	6328-C3	7328B	6328-C3

500	4-10	6330-C3(NU330E)	6330-C3	7330B	6330-C3

YBX4 SERIES OF TECHNICAL DATA:

Motor specifications	Power KW	Speed r/min	Efficiency %		Power factor Cos Φ	Current(380V)A		Torque			Noise dB(A) Lw/Lp	moment of inertia kg.m2	Weight kg
			100% Load	75% Load		rated current IN A	Blocking rotating Cuient	Rated torue TN(Nm)	Blbocking torque	Maximum torque
			100% Load	75% Load		rated current IN A	rated current	Rated torue TN(Nm)	Rated torque	Rated torque
YBX4-80M1-2	0.75	2825	83.5	83.5	0.83	1.75	6.8	2.54	2.3	2.3	64/56	0.005	43
YBX4-80M2-2	1.1	2825	85.2	85.2	0.83	2.50	7.3	3.72	2.3	2.3	64/56	0.007	46
YBX4-90S-2	1.5	2840	86.5	86.5	0.84	3.30	7.6	5.04	2.3	2.3	72/64	0.009	52
YBX4-90L-2	2.2	2840	88.0	88.0	0.85	4.69	7.8	7.40	2.3	2.3	72/64	0.017	55
YBX4-100L-2	3	2880	89.1	89.1	0.87	6.16	8.1	9.95	2.3	2.3	76/68	0.03	71
YBX4-112M-2	4	2890	90.0	90.0	0.88	8.01	8.3	13.22	2.2	2.3	77/69	0.063	98
YBX4-132S1-2	5.5	2900	90.9	90.9	0.88	10.85	8.0	18.11	2.2	2.3	80/72	0.073	115
YBX4-132S2-2	7.5	2900	91.7	91.7	0.89	14.46	7.8	24.70	2.2	2.3	80/72	0.21	125
YBX4-160M1-2	11	2930	92.6	92.6	0.89	20.90	7.9	35.85	2.2	2.3	82/74	0.25	177
YBX4-160M2-2	15	2930	93.3	93.3	0.89	28.28	8.0	48.89	2.2	2.3	82/74	0.31	191
YBX4-160L-2	18.5	2930	93.7	93.7	0.89	34.66	8.1	60.30	2.2	2.3	82/74	0.37	212
YBX4-180M-2	22	2940	94.0	94.0	0.89	41.08	8.2	71.46	2.2	2.3	85/77	0.63	278
YBX4-200L1-2	30	2950	94.5	94.5	0.89	55.60	7.5	97.12	2.2	2.3	87/79	0.73	366
YBX4-200L2-2	37	2950	94.8	94.8	0.89	68.20	7.5	119.78	2.2	2.3	87/79	1.28	385
YBX4-225M-2	45	2970	95	95	0.89	82.59	7.6	144.70	2.2	2.3	89/82	1.55	460
YBX4-250M-2	55	2970	95.3	95.3	0.89	100.62	7.6	176.85	2.2	2.3	89/82	1.89	560
YBX4-280S-2	75	2970	95.6	95.6	0.89	136.50	6.9	241.16	2.0	2.3	91/83	2.02	730
YBX4-280M-2	90	2970	95.8	95.8	0.89	163.09	7.0	289.39	2.0	2.3	91/83	2.26	850
YBX4-315S-2	110	2980	96.0	96.0	0.9	196.71	7.1	352.52	2.0	2.2	95/85	2.42	1265
YBX4-315M-2	132	2980	96.2	96.2	0.9	235.54	7.1	423.02	2.0	2.2	95/85	2.726	1334
YBX4-315L1-2	160	2980	96.3	96.3	0.91	281.48	7.1	512.75	2.0	2.2	95/85	3.22	1553
YBX4-315L-2	185	2980	96.5	96.5	0.91	325.46	7.1	592.87	2.0	2.2	95/85	3.41	1725
YBX4-315L2-2	200	2980	96.5	96.5	0.91	351.12	7.1	640.94	2.0	2.2	95/85	3.86	1840
YBX4-355S1-2	185	2980	96.5	96.5	0.91	325.20	7.1	592.87	2.0	2.2	98/88	4.82	1944
YBX4-355S2-2	200	2980	96.5	96.5	0.91	351.12	7.1	640.94	2.0	2.2	98/88	5.46	1944
YBX4-355M1-2	220	2980	96.5	96.5	0.91	386.23	7.1	705.03	2.0	2.2	98/88	6.22	2116
YBX4-355M2-2	250	2980	96.5	96.5	0.91	438.90	7.1	801.17	2.0	2.2	98/88	6.54	2415
YBX4-355L1-2	280	2980	96.5	96.5	0.91	491.56	7.1	897.32	2.0	2.2	98/88	6.95	2599
YBX4-355L2-2	315	2980	96.5	96.5	0.91	553.00	7.1	1009.4	2.0	2.2	98/88	7.06	3260

Motor specifications	Power KW	Speed r/min	Efficiency%		Power factor Cos Φ	Current(380V)A		Torque			Noise dB(A) Lw/Lp	moment of inertia kg.m2	Weight kg
			100% Load	75% Load		rated current IN A	Blockiugreontating	Rated torque TN(Nm)	Blocking torque	Maximum torque
			100% Load	75% Load		rated current IN A	rated current	Rated torque TN(Nm)	Rated torque	Rated torque
YBX4-80M1-4	0.55	1390	83.9	83.9	0.75	1.60	6.3	3.78	2.3	2.3	58/50	0.007	43
YBX4-80M2-4	0.75	1390	85.7	85.7	0.75	1.91	6.5	5.15	2.3	2.3	58/50	0.012	46
YBX4-90S-4	1.1	1400	87.2	87.2	0.75	2.75	6.6	7.50	2.3	2.3	61/53	0.015	51
YBX4-90L-4	1.5	1400	88.2	88.2	0.75	3.68	6.9	10.23	2.3	2.3	61/53	0.031	55
YBX4-100L1-4	2.2	1420	89.5	89.5	0.81	4.91	7.5	14.80	2.3	2.3	64/56	0.039	71
YBX4-100L2-4	3	1420	90.4	90.4	0.82	6.53	7.6	20.18	2.3	2.3	64/56	0.059	98
YBX4-112M-4	4	1440	91.1	91.1	0.82	8.61	7.7	26.53	2.3	2.3	65/57	0.113	115
YBX4-132S-4	5.5	1440	91.9	91.9	0.82	11.66	7.5	36.48	2.0	2.3	71/63	0.167	125
YBX4-132M-4	7.5	1440	92.6	92.6	0.83	15.56	7.4	49.74	2.0	2.3	71/63	0.36	127
YBX4-160M-4	11	1460	93.3	93.3	0.85	21.95	7.5	71.95	2.2	2.3	74/66	0.42	189
YBX4-160L-4	15	1460	93.9	93.9	0.86	29.33	7.5	98.12	2.2	2.3	74/66	0.68	212
YBX4-180M-4	18.5	1470	94.2	94.2	0.86	35.90	7.7	120.19	2.2	2.3	76/68	0.072	275
YBX4-180L-4	22	1470	94.5	94.5	0.86	42.46	7.8	142.93	2.2	2.3	76/68	0.81	300
YBX4-200L-4	30	1470	94.9	94.9	0.86	57.41	7.2	194.90	2.2	2.3	79/71	1.21	423
YBX4-225S-4	37	1480	95.2	95.2	0.86	70.58	7.3	238.75	2.2	2.3	81/73	1.85	460
YBX4-225M-4	45	1480	95.4	95.4	0.86	85.47	7.4	290.37	2.2	2.3	81/73	2.32	477
YBX4-225M-4	45	1480	95.4	95.4	0.86	85.47	7.4	290.37	2.2	2.3	81/73	2.32	477
YBX4-250M-4	55	1480	95.7	95.7	0.86	104.24	7.4	354.90	2.2	2.3	82/74	2.86	676
YBX4-280S-4	75	1480	96.0	96.0	0.88	137.88	6.7	483.95	2.0	2.3	85/77	3.34	782
YBX4-280M-4	90	1485	96.1	96.1	0.88	165.11	6.9	578.79	2.0	2.3	85/77	4.68	915
YBX4-315S-4	110	1485	96.3	96.3	0.88	201.16	6.9	707.41	2.0	2.2	91/79	4.96	1323
YBX4-315M-4	132	1485	96.4	96.4	0.88	240.89	6.9	848.89	2.0	2.2	91/79	5.22	1380
YBX4-315L1-4	160	1485	96.6	96.6	0.89	287.50	6.9	1028.96	2.0	2.2	91/79	5.43	1518
YBX4-315L-4	185	1485	96.7	96.7	0.89	331.04	6.9	1189.73	2.0	2.2	91/79	5.62	1633
YBX4-315L2-4	200	1485	96.7	96.7	0.89	355.65	6.9	1286.20	2.0	2.2	91/79	6.45	1725
YBX4-355S1-4	185	1488	96.7	96.7	0.89	331.10	6.9	1187.33	2.0	2.2	94/82	6.56	1955
YBX4-355S2-4	200	1488	96.7	96.7	0.89	355.65	6.9	1283.60	2.0	2.2	94/82	6.88	2070
YBX4-355M1-4	220	1488	96.7	96.7	0.9	389.70	6.9	1411.96	2.0	2.2	94/82	7.22	2231
YBX4-355M2-4	250	1488	96.7	96.7	0.9	442.84	6.9	1604.50	2.0	2.2	94/82	7.46	2392
YBX4-355L1-4	280	1488	96.7	96.7	0.9	495.98	6.9	1797.04	2.0	2.2	94/82	7.68	2599
YBX4-355L2-4	315	1488	96.7	96.7	0.9	557.29	6.9	2021.67	2.0	2.2	94/82	7.8	2990

YBX4 SERIES OF TECHNICAL DATA:

Motor specifications	Power KW	Speed r/min	Efficiency%		Power factor Cos Φ	Current(380V)A		Torque			Noise dB(A) Lw/Lp	moment of inertia kg.m2	Weight kg
			100% Load	75% Load		rated current IN A	Blockingrotating	Rated torque TN(Nm)	Blocking torque	Maximum torque
			100% Load	75% Load		rated current IN A	rated current	Rated torque TN(Nm)	Rated torque	Rated torque
YBX4-80M1-6	0.37	910	78.0	78.0	0.7	1.22	4.7	3.88	1.9	2.0	54/46	0.039	46
YBX4-80M2-6	0.55	910	80.9	80.9	0.72	1.68	4.7	5.77	1.9	2.1	54/46	0.059	51
YBX4-90S-6	0.75	910	82.7	82.7	0.72	2.12	5.8	7.87	2.1	2.1	57/49	0.113	69
YBX4-90L-6	1.1	910	84.5	84.5	0.73	2.95	5.9	11.54	2.1	2.1	57/49	0.167	71
YBX4-100L-6	1.5	940	85.9	85.9	0.74	3.85	6.0	15.24	2.1	2.1	61/53	0.36	89
YBX4-112M-6	2.2	940	87.4	87.4	0.74	5.60	6.0	22.35	2.1	2.1	65/57	0.42	115
YBX4-132S-6	3	960	88.6	88.6	0.74	7.42	6.2	29.84	2.0	2.1	69/62	0.69	122
YBX4-132M1-6	4	960	89.5	89.5	0.74	9.75	6.8	39.79	2.0	2.1	69/62	0.072	127
YBX4-132M2-6	5.5	960	90.5	90.5	0.75	13.20	7.1	54.71	2.0	2.1	69/62	0.81	130
YBX4-160M-6	7.5	970	91.3	91.3	0.78	17.12	6.7	73.84	2.1	2.1	70/62	1.21	185
YBX4-160L-6	11	970	92.3	92.3	0.79	24.20	6.9	108.30	2.1	2.1	70/62	1.32	222
YBX4-180L-6	15	970	92.9	92.9	0.81	32.34	7.2	147.68	2.0	2.1	70/62	1.62	280
YBX4-200L1-6	18.5	970	93.4	93.4	0.81	39.36	7.2	182.14	2.1	2.1	76/68	1.84	366
YBX4-200L2-6	22	970	93.4	93.7	0.82	46.19	7.3	216.60	2.1	2.1	76/68	2.43	385
YBX4-225M-6	30	980	94.2	94.2	0.81	62.30	7.1	292.35	2.0	2.1	76/68	2.68	471
YBX4-250M-6	37	980	94.5	94.5	0.84	72.63	7.1	360.56	2.1	2.1	78/70	3.46	633
YBX4-280S-6	45	980	94.8	94.8	0.86	86.27	7.2	438.52	2.1	2.0	80/72	3.97	750
YBX4-280M-6	55	980	95.1	95.1	0.86	105.1	7.2	535.97	2.1	2.0	80/72	4.57	859
YBX4-315S-6	75	985	95.4	95.4	0.85	143.89	6.7	727.16	2.0	2.0	85/73	4.83	1242
YBX4-315M-6	90	985	95.6	95.6	0.84	173.42	6.7	872.59	2.0	2.0	85/73	5.32	1311
YBX4-315L1-6	110	985	95.8	95.8	0.85	208.37	6.7	1066.50	2.0	2.0	85/73	5.95	1506
YBX4-315L2-6	132	985	96.0	96.0	0.86	246.59	6.7	1279.80	2.0	2.0	85/73	7.32	1610
YBX4-315L2-6	132	985	96.0	96.0	0.86	246.59	6.7	1279.80	2.0	2.0	85/73	7.32	1610
YBX4-355S-6	160	985	96.2	96.2	0.87	294.29	6.7	1551.27	2.0	2.0	91/79	7.89	1897
YBX4-355M1-6	185	985	96.3	96.3	0.87	339.16	6.7	1793.65	2.0	2.0	91/79	8.17	2024
YBX4-355M2-6	200	985	96.3	96.3	0.87	367.30	6.7	1939.09	2.0	2.0	91/79	8.25	2265
YBX4-355L1-6	220	985	96.5	96.5	0.87	404.00	6.7	2132.99	2.0	2.0	91/79	8.36	2461
YBX4-355L2-6	250	985	96.6	96.6	0.87	459.55	6.7	2423.86	2.0	2.0	91/79	8.38	2587

Motor specifications	Power KW	Speed r/min	Efficiency		Power factor Cos Φ	Current(380V)A		Torque			Noise dB(A) Lw/Lp	moment of inertia kg.m2	Weight kg
			100% Load	75% Load		rated current IN A	Blocking rotating	Rated torque TN(Nm)	Blocking torque	Maximum torque
			100% Load	75% Load		rated current IN A	rated current	Rated torque TN(Nm)	Rated torque	Rated torque
YBX4-80M1-8	0.18	710	67.2	67.2	0.61	1.15	3.3	2.42	1.8	1.9	52/44	0.16	43
YBX4-80M2-8	0.25	710	70.8	70.8	0.61	1.50	3.3	3.36	1.8	1.9	52/44	0.18	46
YBX4-80M2-8	0.25	710	70.8	70.8	0.61	1.50	3.3	3.36	1.8	1.9	52/44	0.18	46
YBX4-90S-8	0.37	710	74.3	74.3	0.62	1.74	4	4.98	1.8	1.9	56/48	0.2	52
YBX4-90L-8	0.55	710	77.0	77.0	0.63	2.57	4	7.40	1.8	2.0	56/48	0.22	55
YBX4-90L-8	0.55	710	77.0	77.0	0.63	2.57	4	7.40	1.8	2.0	56/48	0.22	55
YBX4-100L1-8	0.75	710	78.4	78.4	0.67	2.89	4	10.09	1.8	2.0	59/51	0.24	72
YBX4-100L2-8	1.1	710	80.8	80.8	0.69	3.92	5	14.80	1.8	2.0	59/51	0.25	90
YBX4-112M-8	1.5	710	82.6	82.6	0.7	4.95	5	20.18	1.8	2.0	61/53	0.28	116
YBX4-132S-8	2.2	710	84.5	84.5	0.71	6.62	6	29.59	1.8	2.0	64/56	0.3	123
YBX4-132M-8	3	710	85.9	85.9	0.73	8.36	6	40.35	1.8	2.0	64/56	0.32	128
YBX4-160M1-8	4	720	87.1	87.1	0.73	11.03	6	53.06	1.9	2.0	68/60	0.46	162
YBX4-160M2-8	5.5	720	88.3	88.3	0.74	14.25	6	72.95	1.9	2.0	68/60	0.61	176
YBX4-160M2-8	5.5	720	88.3	88.3	0.74	14.25	6	72.95	1.9	2.0	68/60	0.61	176
YBX4-160L-8	7.5	720	89.3	89.3	0.75	18.55	6	99.48	1.9	2.0	68/60	1.06	212
YBX4-160L-8	7.5	720	89.3	89.3	0.75	18.55	6	99.48	1.9	2.0	68/60	1.06	212
YBX4-180L-8	11	730	90.4	90.4	0.75	26.23	6.5	143.90	2	2.0	70/62	1.6	268
YBX4-200L-8	15	730	91.2	91.2	0.76	34.85	6.6	196.23	2	2.0	73/65	2.28	282
YBX4-225S-8	18.5	730	91.7	91.7	0.76	41.92	6.6	242.02	1.9	2.0	73/65	2.74	431
YBX4-225M-8	22	730	92.1	92.1	0.78	48.31	6.6	287.81	1.9	2.0	73/65	3.67	454
YBX4-250M-8	30	730	92.7	92.7	0.79	64.32	6.5	392.47	1.9	2.0	75/67	5.16	639
YBX4-280S-8	37	740	93.1	93.1	0.79	79.12	6.6	477.50	1.9	2.0	76/67	5.82	705
YBX4-280M-8	45	740	93.4	93.4	0.79	95.36	6.6	580.74	1.9	2.0	76/67	6.74	815
YBX4-315S-8	55	740	93.7	93.7	0.81	112.86	6.6	709.80	1.8	2.0	82/70	7.35	1058
YBX4-315M-8	75	740	94.2	94.2	0.81	151.58	6.2	967.91	1.8	2.0	82/70	8.79	1265
YBX4-315L1-8	90	740	94.4	94.4	0.82	178.9	6.4	1161.49	1.8	2.0	82/70	9.18	1288
YBX4-315L2-8	110	740	94.7	94.7	0.82	218.44	6.4	1419.59	1.8	2.0	82/70	10.19	1495
YBX4-355S-8	132	740	94.9	94.9	0.82	264.37	6.4	1703.51	1.8	2.0	89/77	11.24	1886
YBX4-355M-8	160	740	95.1	95.1	0.82	317.72	6.4	2064.86	1.8	2.0	89/77	12.48	2093
YBX4-355L1-8	185	740	95.4	95.4	0.82	368.52	6.4	2387.50	1.8	2.0	89/77	13.56	2415
YBX4-355L2-8	200	740	95.4	95.4	0.83	391.11	6.4	2581.08	1.8	2.0	89/77	13.84	2450

Keyword:

YBX4 Explosion proof Three phase Asynchronous Motor B

Categories:

YBX4 Explosion proof Three phase Asynchronous Motor B

Related downloads

Kailida Long Axis Sample Book 2024

File Download

Kailida Motor Sample English Version 14

File Download

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

Our contact information

TEL:+86 18858672999

Wechat: +86 18858672999/18057695772

EMAIL：info@cn-kailida.com

ADD:10th Rongshi Road Zeguo Town Wenling City Zhejiang Province China

Let's Talk.

Business license
