Detail display
- Technical parameter
-

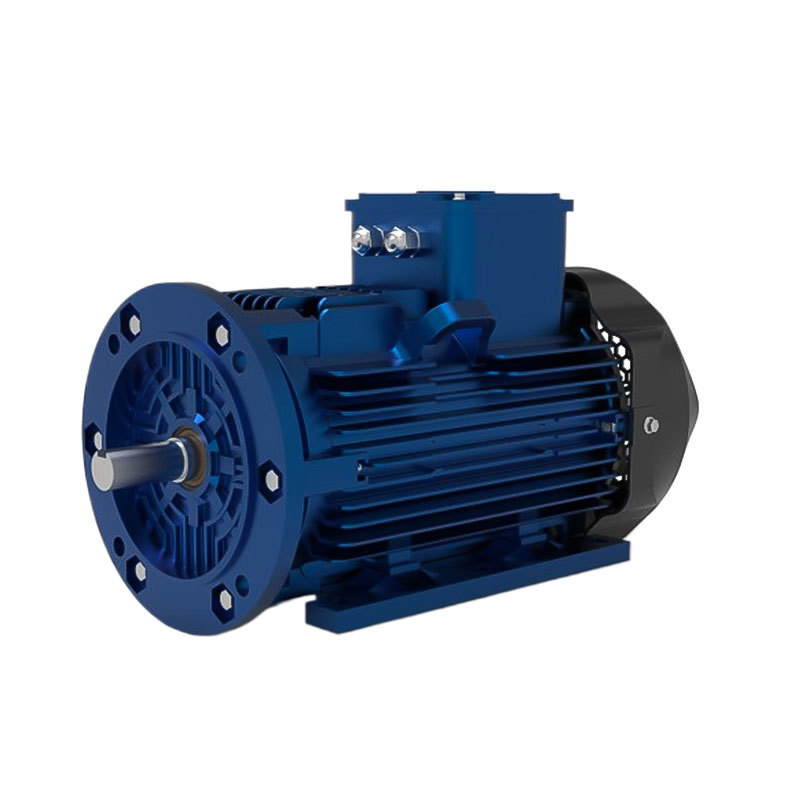

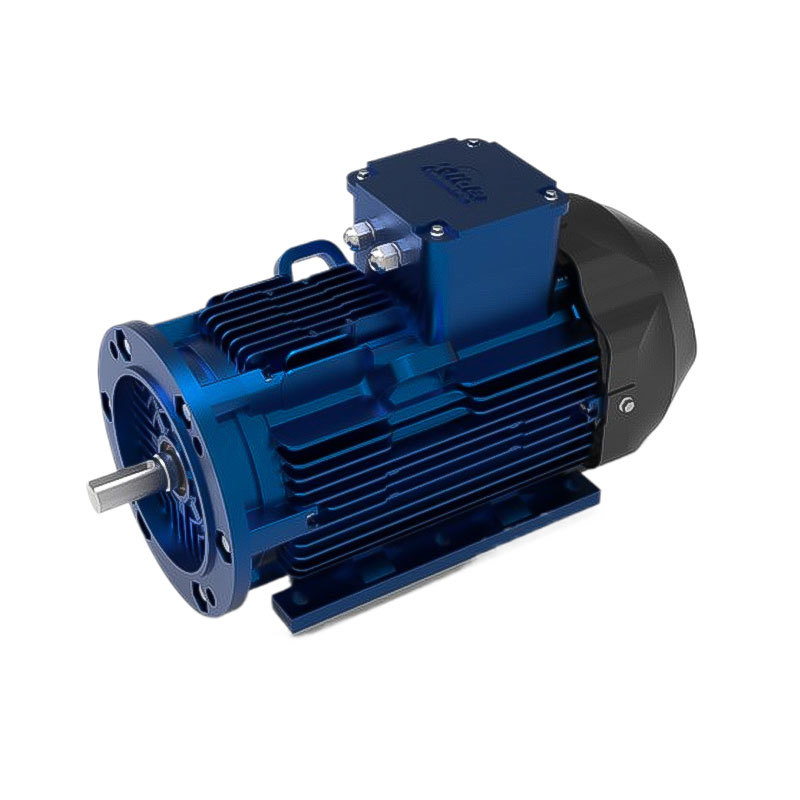

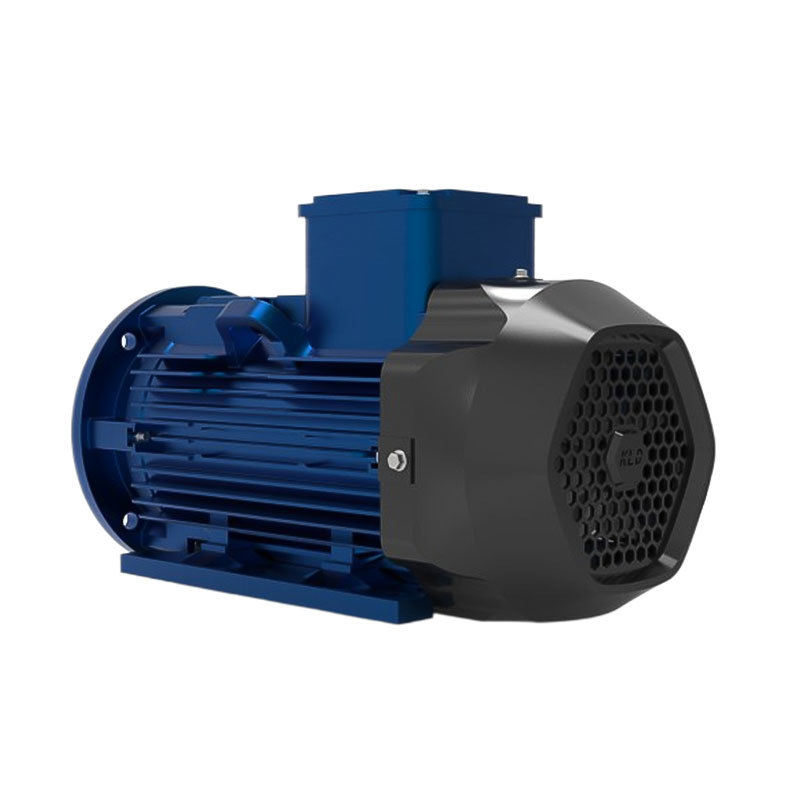

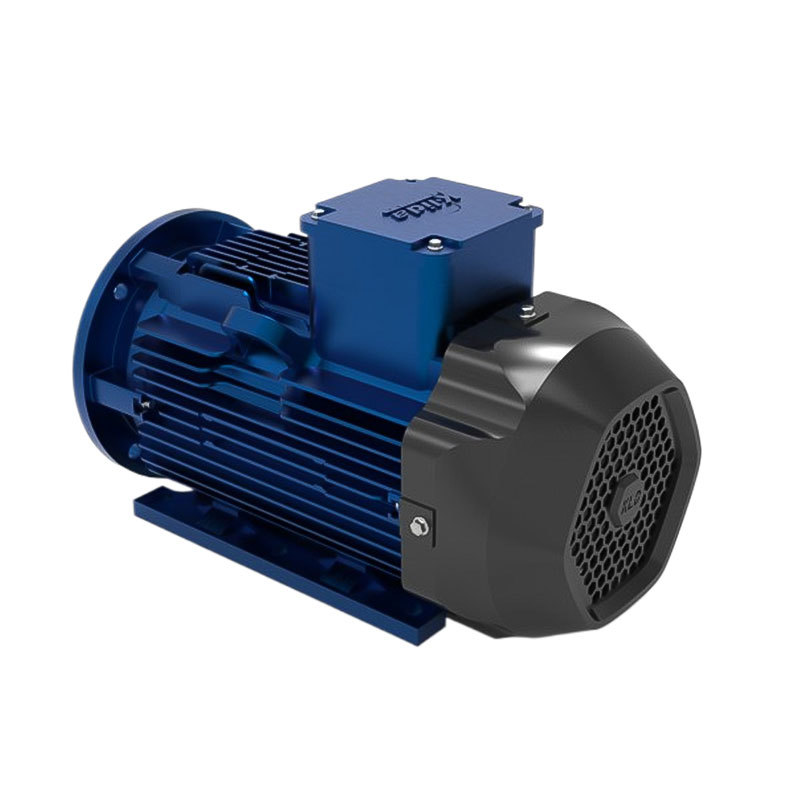

- Commodity name: YE4 ultra efficient motor
Conditions of Use:
Environmental air temperature:- 15℃≤0≤40℃
Altitude: not exceeding 1000 meters
Voltage: 220, 380V230, 440V380, 660V400, 690V
Frequency: 50HZ, 60HZ
Connection method: Y connection method is used for specifications of 3KW and below, and Δ connection method is used for specifications of 4KW and above
Working method: Continuous (SI)
Insulation level: F， Winding stator temperature rise assessment 80K
Protection level: chassis IP54 IP55， Junction box IP55.
Cooling method: IC411Code Description:
Motor parameters:
Specification and model Rated power
(kw)Rated speed
(r/min)Efficiency
(%)Power factor
(Cosx)Rated voltage
(v)Frequency
(Hz)Rated current
(A)Maximum torque/rated torque Locked rotor torque/rated torque Locked rotor current/rated current YE4-80M1-2 0.75 2825 83.5 0.83 220/380 50 2.8/1.6 2.3 2.2 8.5 YE4-80M2-2 1.1 2825 85.2 0.83 220/380 50 4.0/2.3 2.3 2.2 8.5 YE4-90S-2 1.5 2840 86.5 0.85 220/380 50 5.3/3.1 2.3 2.2 9.0 YE4-100L-2 2.2 2840 88 0.86 220/380 50 7.6/4.4 2.3 2.2 9.0 YE4-112M-2 4 2890 90 0.88 380/660 50 7.6/4.4 2.3 2.2 9.5 YE4-132S1-2 5.5 2900 90.9 0.88 380/660 50 10.4/6.0 2.3 2.0 9.5 YE4-132S2-2 7.5 2900 91.7 0.89 380/660 50 13.9/8.0 2.3 2.0 9.5 YE4-160M1-2 11 2930 92.6 0.89 380/660 50 20.2/11.6 2.3 2.0 9.5 YE4-160L-2 15 2930 93.3 0.89 380/660 50 27.4/15.8 2.3 2.0 9.5 YE4-160L-2 18.5 2930 93.7 0.89 380/660 50 33.7/19.4 2.3 2.0 9.5 YE4 series extended shaft installation dimensions>

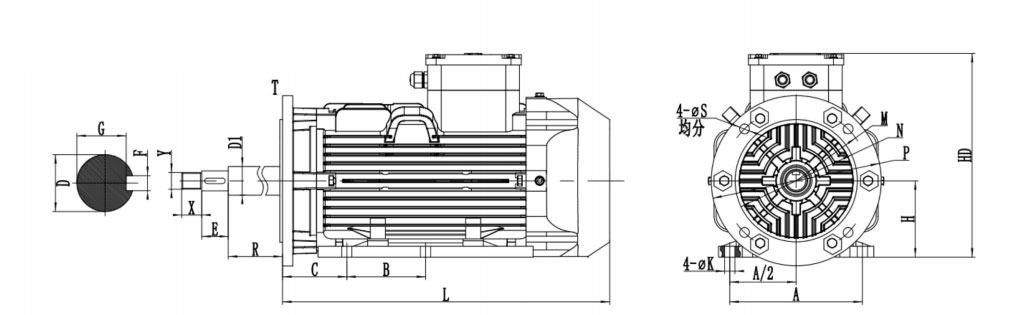

Installation dimensions of long axis motors for Y E 4 series chemical pumps Model A B C D D1 E F G H K M N S P T R X Y L HD 80M 125 100 50 20 30 33 6 16.5 80 10 165 130 12 200 3.5 362 22 M18×2 355 230 90S 140 100 56 20 30 33 6 16.5 90 12 165 130 12 200 3.5 362 22 M18×2 390 255 90L 140 125 56 20 30 33 6 16.5 90 12 165 130 12 200 3.5 362 22 M18×2 390 255 112M 190 140 70 20 30 33 6 16.5 112 12 215 180 12 250 4 362 22 M18×2 480 305 132S 216 140 89 20 35 33 6 16.5 132 15 265 230 12 300 4 362 22 M18×2 520 355 132M 216 140 89 20 35 33 6 16.5 132 15 265 230 12 300 4 362 22 M18×2 520 355 160M 254 210 108 20 35 33 6 16.5 160 15 300 250 19 350 5 362 22 M18×2 510 410 160L 254 254 108 20 35 33 6 16.5 160 15 300 250 19 350 5 362 22 M18×2 555 410 180M 279 241 121 20 35 33 6 16.5 180 15 300 250 19 350 5 362 22 M18×2 575 435 180L 279 241 121 20 35 33 6 16.5 180 15 300 250 19 350 5 362 22 M18×2 620 435 YE4 series standard shaft installation dimensions>

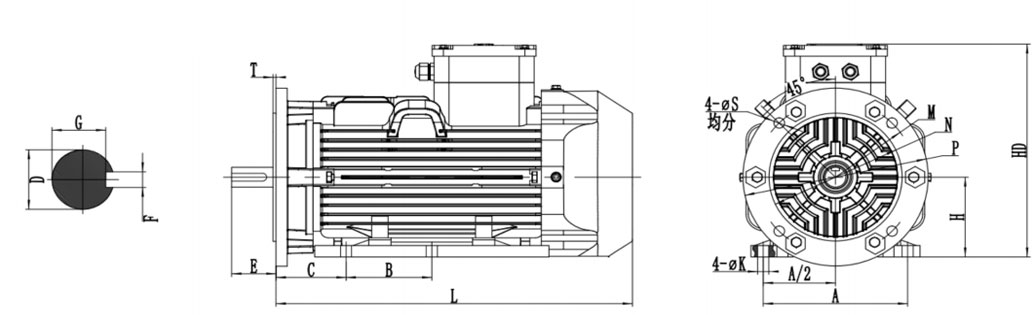

Installation dimensions of standard shaft motors for Y E 4 series chemical pumps Model A B C D E F G H K M N S P T L HD 80M 125 100 50 19 40 6 15.5 80 10 165 130 12 200 3.5 355 230 90S 140 100 56 24 50 8 20 90 12 165 130 12 200 3.5 390 255 90L 140 125 56 24 50 8 20 90 12 165 130 12 200 3.5 390 255 112M 190 140 70 28 60 8 24 112 12 215 180 12 250 4 480 305 132S 216 140 89 38 80 10 33 132 15 265 230 12 300 4 520 355 132M 216 140 89 38 80 10 33 132 15 265 230 12 300 4 520 355 160M 254 210 108 42 110 12 37 160 15 300 250 19 350 5 510 410 160L 254 254 108 42 110 12 37 160 15 300 250 19 350 5 555 410 180M 279 241 121 48 110 14 42.5 180 15 300 250 19 350 5 575 435 180L 279 241 121 48 110 14 42.5 180 15 300 250 19 350 5 620 435
