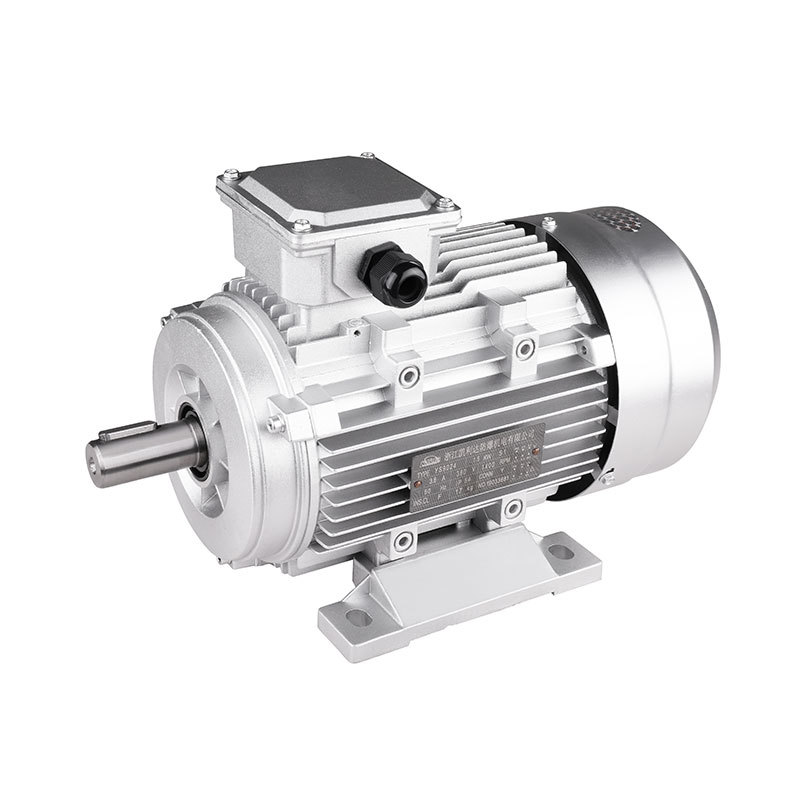

MS Series Aluminum House Motor lEC Standards
E-mail：info@cn-kailida.com
Tel: +86-18858672999
Categories：
Detail display
- Technical parameter
-
- Commodity name: MS Series Aluminum House Motor lEC Standards
MS TECHNICAL PARAMETERS:
Models Rated power Rated current (A) Frequency (HZ) Efficiency (%) Power factor Block rotation distance/ Rated rotation distance Maximum torque/ Rated rotation distance Blocking rotating current / rated current KW 0 380V 400V 415V MS561-2 0.09 0.12 0.29 0.27 0.26 50 53.6 0.77 2.2 2.1 5.2 MS562-2 0.12 0.18 0.37 0.35 0.33 50 53.6 0.78 2.2 2.1 5.2 MS63M1-2 0.18 0.25 0.53 0.5 0.49 50 60.4 0.8 2.3 2.3 5.5 MS63M2-2 0.25 0.34 0.69 0.65 0.63 50 64.8 0.81 2.3 2.3 5.5 MS71M1-2 0.37 0.5 1.01 0.96 0.92 50 69.5 0.81 2.2 2.3 6.1 MS71M2-2 0.55 0.75 1.38 1.3 1.26 50 74.1 0.82 2.3 2.3 6.1 MS80M1-2 0.75 1.0 1.77 1.67 1.6 50 77.4 0.83 2.3 2.2 6.1 MS80M2-2 1.1 1.5 2.61 2.34 2.24 50 79.6 0.84 2.3 2.2 6.9 MS90S-2 1.5 2.0 3.46 3.29 3.15 50 81.3 0.84 2.3 2.2 7.0 MS90L-2 2.2 3.0 4.85 4.6 4.4 50 83.2 0.85 2.3 2.2 7.0 MS100L-2 3 4.0 6.34 6.02 5.77 50 84.2 0.87 2.3 2.2 7.5 MS112M-2 4 5.5 8.2 7.8 7.46 50 85.5 0.88 2.3 2.2 7.5 MS132S1-2 5.5 7.5 11.1 10.5 10.1 50 87.0 0.88 2.3 2.2 7.5 MS132S2-2 7.5 10.0 14.9 14.15 13.56 50 88.1 0.88 2.3 2.2 7.5 MS160M1-2 11 15.0 21.3 20.2 19.4 50 89.4 0.89 2.3 2.2 7.5 MS160M2-2 15 20.0 28.8 27.4 26.2 50 90.3 0.89 2.3 2.2 7.5 MS160L-2 18.5 25.0 34.7 32.97 31.6 50 90.0 0.9 2.3 2.2 7.5 MS561-4 0.06 0.08 0.23 0.22 0.21 50 52.0 0.7 2.1 2.0 4.0 MS562-4 0.09 0.12 0.33 0.31 0.3 50 56.0 0.72 2.1 2.0 4.0 MS63M1-4 0.12 0.18 0.44 0.42 0.4 50 59.1 0.72 2.2 2.1 4.4 MS63M2-4 0.18 0.25 0.62 0.59 0.56 50 64.1 0.73 2.2 2.1 4.4 MS71M1-4 0.25 0.34 0.79 0.75 0.72 50 68.5 0.74 2.2 2.1 5.2 MS71M2-4 0.37 0.5 1.12 1.1 1.0 50 72.7 0.75 2.2 2.1 5.2 MS80M1-4 0.55 0.75 1.52 1.44 1.38 50 77.1 0.75 2.3 2.4 5.2 MS80M2-4 0.75 1 1.95 1.85 1.77 50 79.6 0.76 2.3 2.3 6.0 MS90S-4 1.1 1.5 2.85 2.7 2.6 50 81.4 0.77 2.3 2.3 6.0 MS90L-4 1.5 2 3.72 3.53 3.39 50 82.8 0.78 2.3 2.3 6.0 MS100L1-4 2.2 3 5.09 4.83 4.6 50 84.3 0.81 2.3 2.3 7.0 MS100L2-4 3 4 6.78 6.4 6.17 50 85.6 0.82 2.3 2.3 7.0 MS112M-4 4 5.5 8.8 8.36 8.0 50 86.3 0.82 2.3 2.3 7.0 MS132S-4 5.5 7.5 11.7 11.12 10.65 50 87.7 0.83 2.3 2.3 7.0 MS132M-4 7.5 10 15.6 14.8 14.2 50 88.7 0.84 2.3 2.3 7.0 MS160M-4 11 15 22.3 21.2 20.3 50 89.8 0.85 2.3 2.3 7.0 MS160L-4 15 20 30.1 28.6 27.4 50 90.3 0.85 2.3 2.3 7.0 MS71M1-6 0.18 0.25 0.74 0.7 0.67 50 56 0.66 2 1.9 4.0 MS71M2-6 0.25 0.34 0.95 0.9 0.86 50 61.6 0.68 2 1.9 4.0 MS80M1-6 0.37 0.5 1.23 1.17 1.12 50 67.6 0.7 2 1.9 4.7 MS80M2-6 0.55 0.75 1.7 1.6 1.55 50 73.1 0.72 2.1 1.9 4.7 MS90S-6 0.75 1 2.29 2.18 2.08 50 75.9 0.72 2.1 2.0 5.3 MS90L-6 1.1 1.5 3.18 3.02 2.9 50 78.1 0.73 2.1 2.0 5.5 MS100L-6 1.5 2 4 3.8 3.64 50 79.8 0.76 2.1 2.0 5.5 MS112M-6 2.2 3 5.6 5.32 5.1 50 81.8 0.76 2.1 2 6.5 MS132S-6 3 4 7.4 7.03 6.73 50 82.3 0.76 2.1 2.1 6.5 MS132M1-6 4 5.5 7.4 9.03 8.65 50 84.3 0.76 2.1 2.1 6.5 MS132M2-6 5.5 7.5 9.5 11.97 11.46 50 86.5 0.77 2.1 2.1 6.5 MS160M-6 7.5 10 12.6 16.1 15.6 50 87.2 0.78 2.1 2.0 6.5 MS160L-6 11 15 24.2 22.99 22.02 50 88.7 0.79 2.1 2.0 6.5 MS80M1-8 0.18 0.25 0.83 0.79 0.75 50 45.9 0.61 1.9 1.8 3.5 MS80M2-8 0.25 0.34 1.1 1.05 1.0 50 50.6 0.61 1.9 1.8 3.3 MS90S-8 0.37 0.5 1.49 1.4 1.36 50 56.1 0.61 1.9 1.8 4.3 MS90L-8 0.55 0.75 2.17 2.06 2.0 50 61.2 0.61 2.0 1.8 4.0 MS100L1-8 0.75 1 2.43 2.3 2.2 50 66.2 0.67 2 1.8 4 MS100L2-8 1.1 1.5 3.36 3.2 3.06 50 70.8 0.69 2 1.8 5 MS112M-8 1.5 2 4.4 4.22 4.04 50 74 0.7 2 1.8 5 MS132S-8 2.2 3 6 5.7 5.46 50 77.4 0.71 2 1.8 6 MS132M-8 3 4 7.8 7.4 7.1 50 81.4 0.73 2 1.8 6 MS160M1-8 4 5.5 10.3 9.78 9.37 50 83.5 0.73 2 1.9 6 MS160M2-8 5.5 7.5 13.6 12.9 12.38 50 85.3 0.74 2 2 6.5 MS outline and installation simensions:

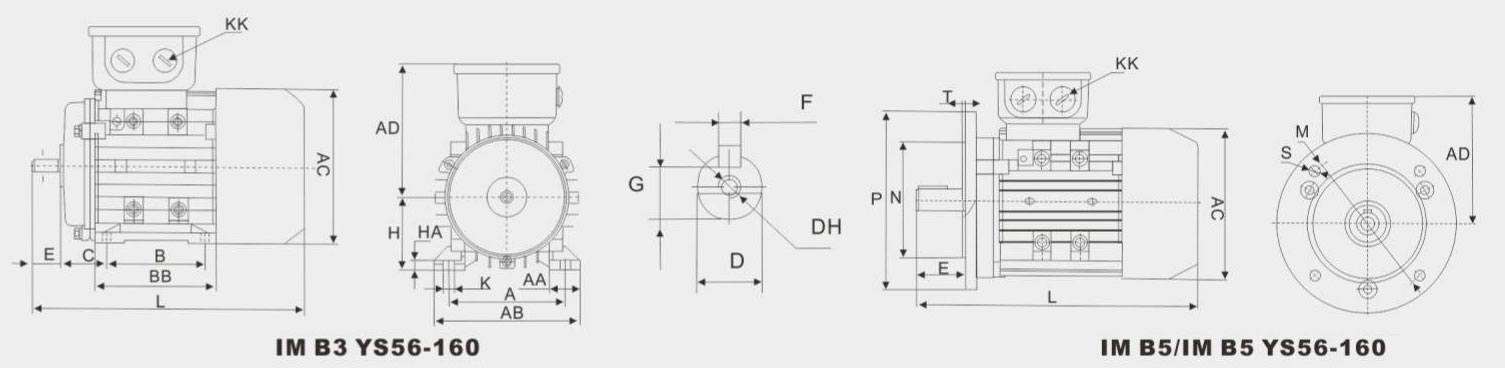

Models Installation dimensions xternal dimensions A AA AB BB HA AC AD B C D DH E F G H K KK L M N P S T METRIC PG MS-56 90 23 115 88 7 110 100 71 36 9 M4X12 20 3 7.2 56 5.8 1-M20x1.5 1-PG11 199 100 80 120 4-ϕ10 3.0 MS-63 100 24 135 100 7 130 115 80 40 11 M4X12 23 4 8.5 63 7 1-M20x1.5 1-PG11 217 115 95 140 4-ϕ10 3.0 MS-71 112 26 150 110 8 145 127 90 45 14 M5X12 30 5 11 71 7 1-M20x1.5 1-PG11 245 130 110 160 4-ϕ10 3.5 MS-80 125 35 165 125 9 175 134 100 50 19 M6X16 40 6 15.5 80 10 1-M25x1.5 1-PG16 287 165 130 200 4-ϕ12 3.5 MS-90S 140 37 180 125 10 195 140 100 56 24 M8X19 50 8 20 90 10 1-M25x1.5 1-PG16 315 165 130 200 4-ϕ12 3.5 MS-90L 140 37 180 150 10 195 140 125 56 24 M8X19 50 8 20 90 10 1-M25x1.5 1-PG16 340 165 130 200 4-ϕ12 3.5 MS-100L 160 40 205 172 11 215 160 140 63 28 M10X22 60 8 24 100 12 1-M32x1.5 1-PG21 385 215 180 250 4-ϕ15 4.0 MS-12M 190 41 230 181 12 240 178 140 70 28 M10X22 60 8 24 112 12 1-M32x1.5 1-PG21 400 215 180 250 4-ϕ15 4.0 MS-132S 216 51 270 186 15 275 206 140 89 38 M12X28 80 10 33 132 12 1-M32x1.5 1-PG21 483 265 230 300 4-ϕ15 4.0 MS-132M 216 51 270 224 15 275 206 178 89 38 M12X28 80 10 33 132 12 1-M32x1.5 1-PG21 510 265 230 300 4-ϕ15 4.0 MS-160M 254 55 320 260 18 330 255 210 108 42 M16X36 110 12 37 160 15 1-M40x1.5 1-PG29 615 300 250 350 4-ϕ19 5.0 MS-160L 254 55 320 304 18 330 255 254 108 42 M16X36 110 12 37 160 15 2-M40x1.5 1-PG29 670 300 250 350 4-ϕ19 5.0
Models Installation dimensions xternal dimensions A AA AB BB HA AC AD B C D DH E F G H K KK L M N P S T METRIC PG MS-56 90 23 115 88 7 110 100 71 36 9 M4X12 20 3 7.2 56 5.8 1-M20x1.5 1-PG11 199 100 80 105 M6 2.5 MS-63 100 24 135 100 7 130 115 80 40 11 M4X12 23 4 8.5 63 7 1-M20x1.5 1-PG11 217 115 95 120 M6 2.5 MS-71 112 26 150 110 8 145 127 90 45 14 M5X12 30 5 11 71 7 1-M20x1.5 1-PG11 245 130 110 140 M8 3.0 MS-80 125 35 165 125 9 175 134 100 50 19 M6X16 40 6 15.5 80 10 1-M25x1.5 1-PG16 287 165 130 160 M8 3.5 MS-90S 140 37 180 125 10 195 140 100 56 24 M8X19 50 8 20 90 10 1-M25x1.5 1-PG16 315 165 130 160 M8 3.5 MS-90L 140 37 180 150 10 195 140 125 56 24 M8X19 50 8 20 90 10 1-M25x1.5 1-PG16 340 165 130 160 M8 3.5 MS-100L 160 40 205 172 11 215 160 140 63 28 M10X22 60 8 24 100 12 1-M32x1.5 1-PG21 385 215 180 200 M10 4.0 MS-112M 190 41 230 181 12 240 178 140 70 28 M10X22 60 8 24 112 12 1-M32x1.5 1-PG21 400 215 180 200 M10 4.0 MS-132S 216 51 270 186 15 275 206 140 89 38 M12X28 80 10 33 132 12 1-M32x1.5 1-PG21 483 265 230 250 M12 4.0
