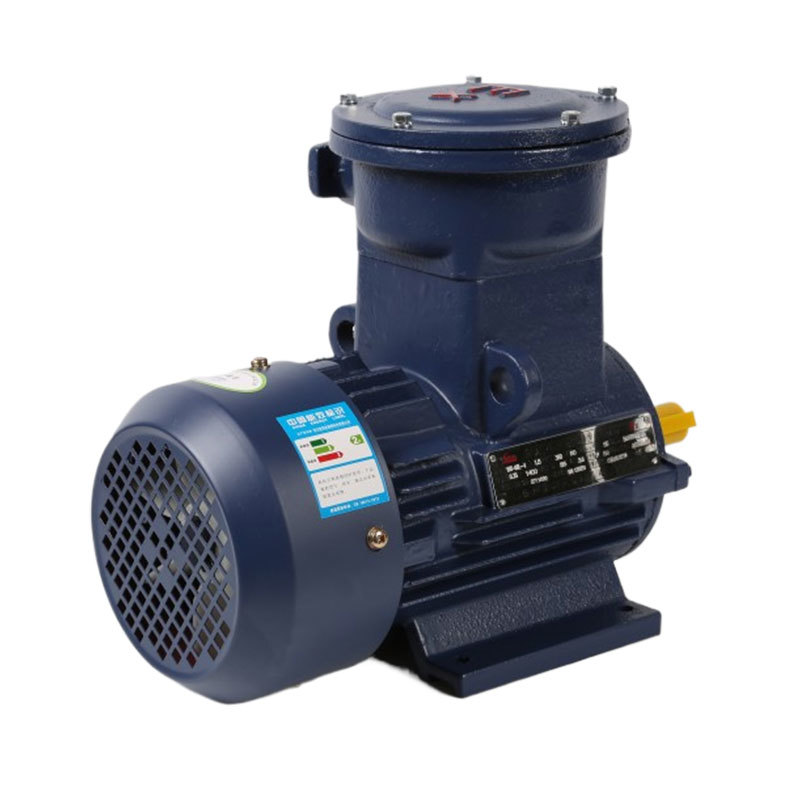

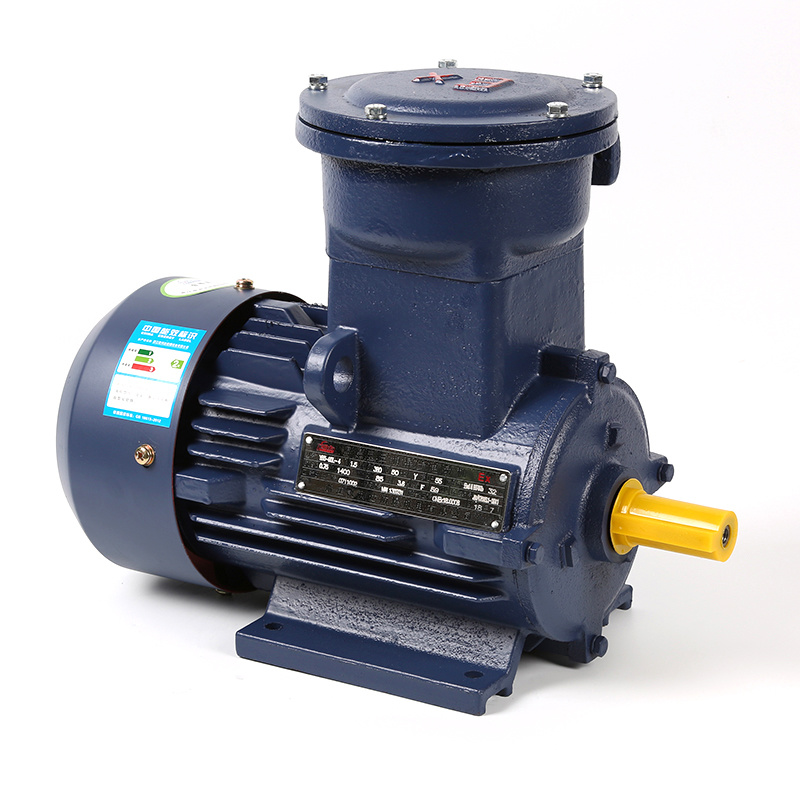

- Commodity name: YBX3 Explosion proof Three phase Asynchronous Motor
Overview:
YBX3 series flameproofthree-phase asynchronous motor (frame No. 63-355), acording to GB3836.1-2021 "Explosive Environment Part1: equipment, general requirements” and GB3836.2-2021 "Explosive Environment Part 2: equipment protected by explosion-proofenclosure" and MT451-2011 "General Technical Specification for safety performance of explosion-proof low-voltage three-phaseasynchronous motor for coal mine” , the isolation type was made. The explosion-proof mark is: Exdbl GB, ExdbllBT4 GB. The utility modelis suitable for use as general power eauioment on fixed eoulpment (Exdbl GBl in coal mine underaround containing methane or coal dusor on equipment in places containing Class ll A, class BT 1-t 4 groups (Exdbl GB, Exdbl BT 4GB) combustible gas or explosive mixture ofvapor and air.
Scope and conditions of use
3.1Application of common combustible gas,steam level,temperature levelfor example see table
Level Section T1 T2 T3 T4 IIA Methane, ethane acetate, propane, styrene, benzene, xylene, toluene, carbon monoxide Butanol, butane, ethanol, propyiene, ethyibenzene, methanol, propanol Cyclohexane, pentane,hexane, heptane, octane, kerosene, diesel, gasoline, decane Acetaldehyde IIB Acetylene, cyclopropane, coke oven gas Oxirane. ethyiene, 1,2-1,2-epoxypropane Dimetnyi ether.butenal, tetrahydrofurfuryl other, acrolein, hydrogen sulfide Ethyl methyi ether. diethyf ether.tetratluoroether IIC Hydrogen Acetylene Acetylene 3.2 Conditions of use
3.2.1Ambientair temperature varies with the seasonsbut does not exceed 35°C-LRB-underground coal mine) or 4C° c (factory),with a minimum ambient air temperature of-1C.°c.
3.2.2 Not more than 1000m above sea level
3.2.3 The maximum relative humidlity of ambient air shall not exceed 95% (when the temperature is 25°C--LRB-RB-(underground coal mine) orthe monthly average maximum relative humidity of the wettest month shall be 90% , and the monthly average minimum temperature shal not excecd 25°c (forfactory use).
3.2.4 Rated voltageis 380V、660V、1140V、380V/660V、660/1140V.
3.2.5 The rated frequency is 50Hz.
3.2.6 The motorrating is based on the continuous working system (s1) as a continuous rating,allowing full-voltage start.
3.2.7 The motoruses F class insulation,stator winding temperature rise (resistance method) by 8oK examination (of which the base number 315L 2,4 oles and,base number355,allowed by 105K examination).Junction Box:

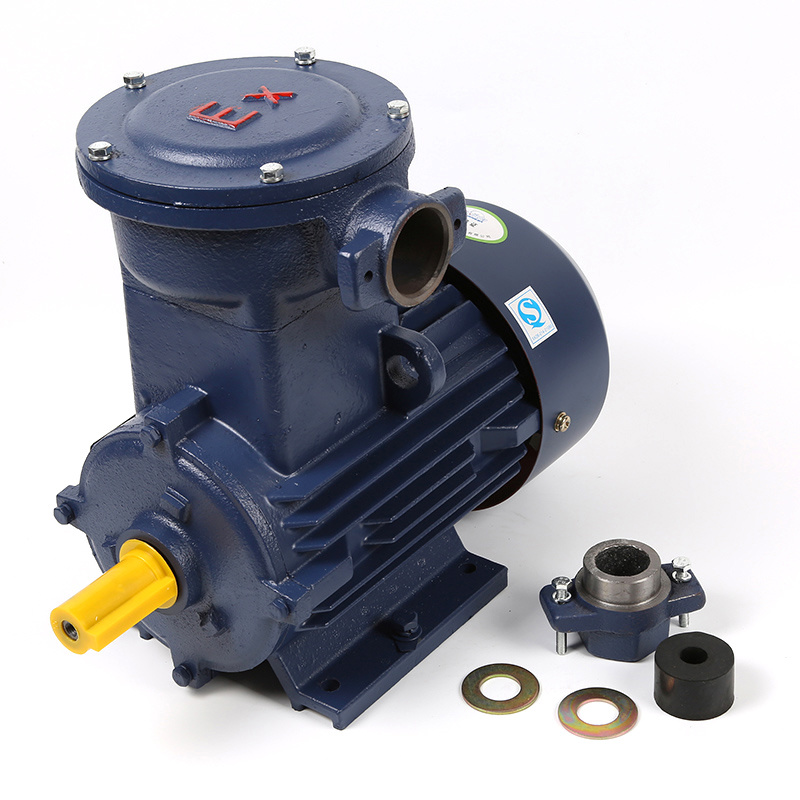

The terminal box is located on the top of the machine base. The powercable leads out from the outlet hole of the terminal box, which can be outleton all sides.The outlet has a sealing structure (see diagram for details)
Outlet hole of Junction Box
Junction
box gradingMotor
specificationsMaximum full
load currentDimension
of outlet hole1 H63-80 2.6 1XM30X2 2 H90-100 6.8 1XM30X2 3 H112-132 15.4 1XM30X2 4 H160-180 42.5 1XM36X2 5 H200-225 84.2 1XM46X2 6 H250-280 166.6 1XM64X2 7 H315 358 2XM64X2 8 H355 546 2XM64X2

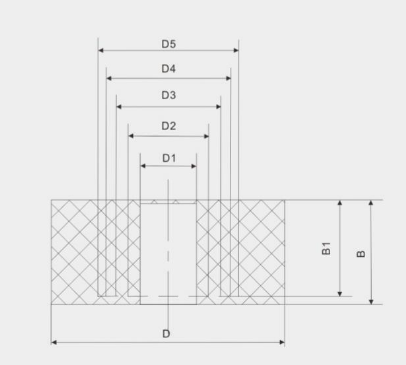

Sealing ring dimensions forvarious machine base numbers (single/double outlet)
Seatn/Size 63-132 160-180 200-225 250-280 315-355 D(single/double) Φ42/- Φ58/- Φ72/- Φ90/Φ72 Φ105/Φ90 D1(single/double) Φ14/- Φ14/- Φ20/- Φ25/Φ26 Φ40/Φ36 D2(single/double) Φ20/- Φ20/- Φ26/- Φ31/Φ26 Φ46/Φ36 D3(single/double) Φ25/- Φ26/- Φ32/- Φ36/Φ32 Φ51/Φ45 D4(single/double) -/- Φ31/- Φ38/- Φ45/Φ38 Φ57/Φ50 D5(single/double) -/- Φ31/- Φ38/- Φ45/Φ38 Φ57/Φ50 B1(single/double) 24/- 28.8/- 30/- 36/30 42/36 B(single/double) 26/- 31.2/- 32/- 38/32 45/38 ANATOMY DIAGRAM OF EXPLOSION-PROOF SERIES MOTOR:

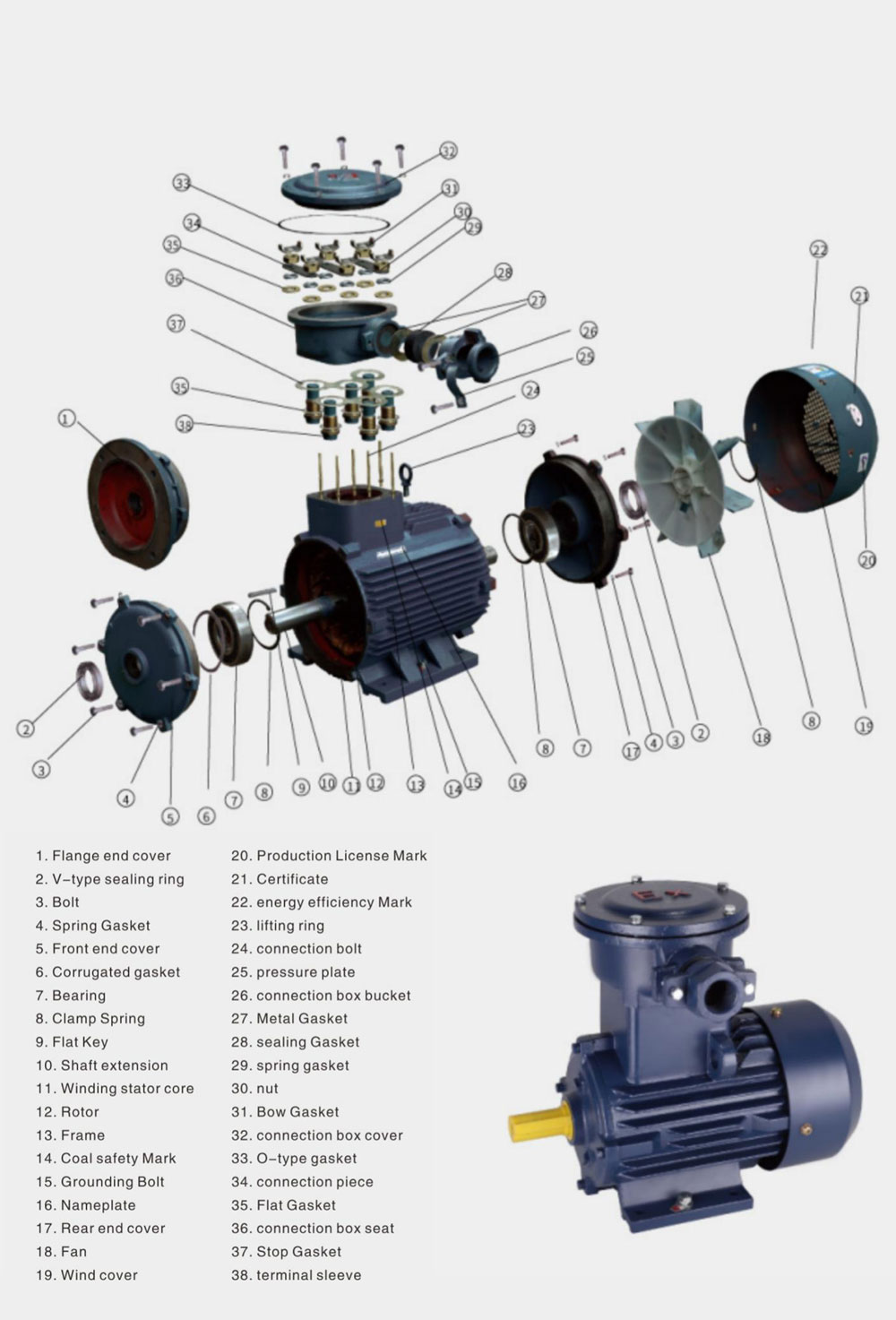

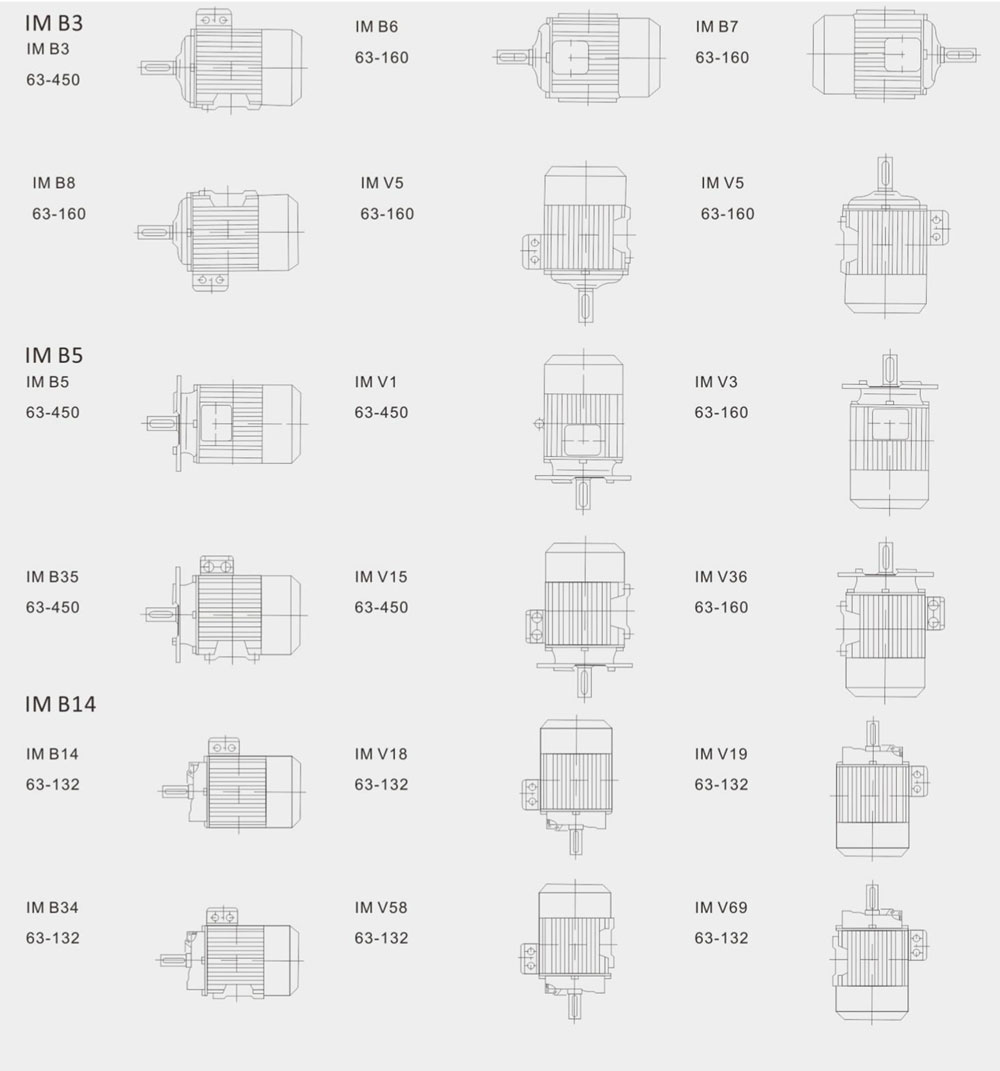

Installation mode
YBX3 TECHNICAL PARAMETERS:
Models Ratea power
Current
(A)Speed
( r/min)
Efficiencv
%
Power factor
CoSøBlocking
rotatina curren/
Block rotation
distanceBlock rotation
distance/
Rated Rotation
distanaMaximum
turning distance/
Rated rotation
distance
Noise
(dB)
Vibration
(mm/s)KW HP Synchronous speed 3000(r/min) YBX3-63M1-2 0.18 0.24 0.53 2730 65 0.80 5.6 2.3 2.2 61 1.80 YBX3-63M2-2 0.25 0.33 0.69 2730 68 0.81 5.6 2.3 2.2 61 1.80 YBX3-71M1-2 0.37 0.5 1.01 2750 69 0.81 6.3 2.3 2.2 64 1.80 YBX3-712-2 0.55 0.75 1.38 2790 74 0.83 6.3 2.3 2.3 64 1.80 YBX3-80M1-2 0.75 1 1.7 2825 80.7 0.83 6.8 2.3 2.3 62 1.6 YBX3-80M2-2 1.1 1.5 2.43 2825 82.7 0.83 7.3 2.3 2.3 62 1.6 YBX3-90S-2 1.5 2 3.22 2840 84.2 0.84 7.6 2.3 2.3 67 1.6 YBX3-90L-2 2.2 3 4.58 2840 85.9 0.85 7.8 2.3 2.3 67 1.6 YBX3-100L-2 3 4 6.02 2880 87.1 0.87 8.1 2.3 2.3 74 1.6 YBX3-112M-2 4 5.5 7.84/4.51 2890 88.1 0.88 8.3 2.3 2.3 77 1.6 YBX3-132S1-2 5.5 7.5 10.7/6.2 2900 89.2 0.88 8 2.2 2.3 79 1.6 YBX3-132S2-2 7.5 10 14.2/8.2 2900 90.1 0.89 7.8 2.2 2.3 79 2.2 YBX3-160M1-2 11 15 20.6/11.9 2930 91.2 0.89 7.9 2.2 2.3 81 2.2 YBX3-160M2-2 15 20 27.9/16.0 2930 91.9 0.89 8 2.2 2.3 81 2.2 YBX3-160L-2 18.5 25 34.2/19.7 2930 92.4 0.89 8.1 2.2 2.3 81 2.2 YBX3-180M-2 22 30 40.5/23.4 2940 92.7 0.89 8.2 2.2 2.3 83 2.2 YBX3-200L1-2 30 40 54.9/31.7 2950 93.3 0.89 7.5 2.2 2.3 84 2.2 YBX3-200L2-2 37 50 67.4/38.9 2950 93.7 0.89 7.5 2.2 2.3 84 2.2 YBX3-225M-2 45 60 81.7/47.1 2970 94.0 0.89 7.6 2.2 2.3 86 2.2 YBX3-250M-2 55 75 99.6/57.5 2970 94.3 0.80 7.6 2.2 2.3 89 2.2 YBX3-280S-2 75 100 135.2/78. 2970 94.7 0.89 6.9 2 2.3 91 2.2 YBX3-280M-2 90 125 161.7/93.4 2970 95.0 0.89 7 2 2.3 91 2.8 YBX3-315S-2 110 150 195.5 2980 95.0 0.9 7.1 2 2.2 92 2.8 YBX3-315M-2 132 180 233.6 2980 95.4 0.9 7.1 2 2.2 92 2.8 YBX3-315L1-2 160 215 280.0 2980 95.4 0.91 7.1 2 2.2 92 2.8 YBX3-315L2-2 200 270 350.0 2980 95.4 0.91 7.1 2 2.2 92 2.8 YBX3-355M-2 250 340 549.0 2980 95.8 0.91 7.1 2 2.2 100 2.8 YBX3-355L-2 315 420 435.7 2980 95.8 0.91 7.1 2 2.2 100 1.6 Synchronous speed:1500(r/min) YBX3-63M1-4 0.12 0.16 0.44 1320 57 0.72 4.5 2.3 2.2 52 1.80 YBX3-63M2-4 0.18 0.24 0.61 1320 65 0.73 4.5 2.3 2.2 52 1.80 YBX3-71M1-4 0.25 0.33 0.79 1350 65 0.74 5.3 2.3 2.2 55 1.80 YBX3-71M2-4 0.37 0.5 1.12 1350 67 0.75 5.3 2.3 2.2 55 1.80 YBX3-80M1-4 0.55 0.75 1.38 1390 77.8 0.75 6.3 2.3 2.3 56 1.6 YBX3-80M2-4 0.75 1 1.84 1390 82.5 0.75 6.5 2.3 2.3 56 1.6 YBX3-90S-4 1.1 1.5 2.65 1400 84.1 0.75 6.6 2.3 2.3 59 1.6 YBX3-90L-4 1.5 2 3.56 1400 85.3 0.75 6.9 2.3 2.3 59 1.6 YBX3-100L1-4 2.2 3 4.76 1420 86.7 0.81 7.5 2.3 2.3 64 1.6 YBX3-100L2-4 3 4 6.34 1420 877 0.82 7.6 2.3 2.3 64 1.6 YBX3-112M-4 4 5.5 8.37/4.82 1440 88.6 0.82 7.7 2.3 2.3 65 1.6
YBX3-132S-4
5.5
7.511.4/6.6
1440
89.6
0.82
7.5
2
2.3
71
1.6YBX3-132M-4 7.5 10 15.2/8.77 1440 90.4 0.83 7.4 2 2.3 71 1.6 YBX3-160M-4 11 15 21.5/12.4 1460 91.4 0.85 7.5 2.2 2.3 73 2.2 YBX3-160L-4 15 20 29.1/16.8 1460 92.1 0.86 7.5 2.2 2.3 73 2.2 YBX3-180M-4 18.5 25 35.3/23.4 1470 92.6 0.86 7.7 2.2 2.3 76 2.2 YBX3-180L-4 22 30 41.8/24.1 1470 93.0 0.86 7.8 2.2 2.3 76 2.2 YBX3-200L-4 30 40 56/32.3 1470 93.6 0.86 7.2 2.2 2.3 76 2.2 YBX3-225S-4 37 50 68.8/39.7 1480 93.9 0.86 7.3 2.2 2.3 78 2.2 YBX3-225M-4 45 60 83.4/48.2 1480 94.2 0.86 7.4 2.2 2.3 78 2.2 YBX3-250M-4 55 75 100.4/58 1480 94.6 0.86 7.4 2.2 2.3 79 2.2 YBX3-280S-4 75 100 136.3/78. 1480 95.0 0.88 6.7 2.2 23 80 2.2 YBX3 TECHNICAL PARAMETERS:
Models
Rated power
Current
(A)Speed
(r/min)
Efficiency
%Power fact
CosøBlocking rotating current/Block rotation distance Block rotation distance/Rated rotation distance Maximum turning distance/Rated rotation distance Noise
dB(A)Vibration
(mm/s)KW HP Synchronous speed:1500(r/min) YBX3-280M-4 90 125 161.4/93.2 1480 95.2 0.88 6.9 2.2 2.3 80 2.2 YBX3-315S-4 110 150 199.1 1485 95.4 0.88 6.9 2.2 2.2 88 2.8 YBX3-315M-4 132 180 238.9 1485 95.4 0.88 6.9 2.2 2.2 88 2.8 YBX3-315L1-4 160 215 286.3 1485 95.4 0.89 6.9 2.2 2.2 88 2.8 YBX3-315L2-4 200 270 357.9 1485 95.4 0.89 6.9 2.2 2.2 88 2.8 YBX3-315M-4 250 340 440.5 1490 95.8 0.9 6.9 2.2 2.2 95 2.8 YBX3-355L-4 315 420 555.1 1490 95.8 0.9 6.9 2.2 2.2 95 2.8 Synchronous speed:1000(r/min) YBX3-71M1-6 0.18 0.24 0.74 865 56 0.66 4.0 2.0 2.1 52 1.80 YBX3-71M2-6 0.25 0.33 0.95 865 59 0.68 4.0 2.0 2.1 52 1.80 YBX3-80M1-6 0.37 0.35 1.3 865 62 0.70 4.0 2.0 2.0 54 1.7 YBX3-80M2-6 0.55 0.75 1.58 870 73.6 0.72 4.0 2.1 2.0 55 1.7 YBX3-90S-6 0.75 1 2.01 910 78.9 0.72 5.8 2.1 2.1 57 1.6 YBX3-90L-6 1.1 1.5 2.83 910 81.0 0.73 5.9 2.1 2.1 57 1.6 YBX3-100L-6 1.5 2 3.73 940 82.5 0.74 6 2.1 2.1 61 1.6 YBX3-112M-6 2.2 3 5.36 940 84.3 0.74 6 2.1 2.1 65 1.6 YBX3-132S-6 3 4 7.20 960 85.6 0.74 6.2 2 2.1 69 1.6 YBX3-132M1-6 4 5.5
9.46/5.45960 86.8 0.74 6.8 2 2.1 69 1.6 YBX3-132M2-6 5.5 7.5 12.7/7.29 960 88.0 0.75 7.1 2 2.1 69 1.6 YBX3-160M-6 7.5 10 16.4/9.5 970 89.1 0.78 6.7 2.1 2.1 70 2.2 YBX3-160L-6 11 15 23.7/13.7 970 90.3 0.79 6.9 2.1 2.1 70 2.2 YBX3-180L-6 15 20 30.9/17.8 970 91.2 0.81 7.2 2 2.1 73 2.2 YBX3-200L1-6 18.5 25 37.8/21.8 970 91.7 0.81 7.2 2.1 2.1 73 2.2 YBX3-200L2-6 22 30 44.2/25.5 970 92.2 0.82 7.3 2.1 2.1 73 2.2 YBX3-225M-6 30 40 60.6/35 980 92.9 0.81 7.1 2 2.1 74 2.2 YBX3-250M-6 37 50 71.7/41.3 980 93.3 0.84 7.1 2.1 2.1 76 2.2 YBX3-280S-6 45 60 84.9/49 980 93.7 0.86 7.2 2.1 2 78 2.2 YBX3-280M-6 55 75 103.3/59.6 980 94.1 0.86 7.2 2.1 2 78 2.2 YBX3-315S-6 75 100 142.3 985 94.2 0.85 6.7 2 2 83 2.8 YBX3-315M-6 90 125 172.3 985 94.5 0.86 6.7 2 2 83 2.8 YBX3-315L1-6 110 150 207.0 985 95.0 0.86 6.7 2 2 83 2.8 YBX3-315L2-6 132 180 245.5 985 95.0 0.87 6.7 2 2 83 2.8 YBX3-355M1-6 160 215 296.7 990 93.0 0.88 6.7 2 2 85 2.8 YBX3-355M3-6 200 270 370.9 990 93.0 0.88 6.7 2 2 85 2.8 YBX3-355L2-6 250 340 463.6 990 93.0 0.88 6.7 2 2 85 2.8 YBX3 TECHNICAL PARAMETERS:
Models Rated power Current(A) Speed (r/min) Efficiency (%) Power factor COS ø Blocking
rotating current/Block rotation distanceBlock rotation distance/Rated rotation distance Maximum turning distance/Rated rotation distance Noise
(dB)Vibration
(mm/s)KW HP Synchronous speed 750(r/min) YBX3-801-8 0.18 0.24 0.88 710 51 0.61 1.8 3.3 1.9 52 1.80 YBX3-802-8 0.25 0.33 1.15 710 54 0.61 1.8 3.3 1.9 52 1.80 YBX3-90S-8 0.37 0.5 1.49 710 62 0.61 1.8 4.0 2.0 56 1.80 YBX3-90L-8 0.55 0.75 2.17 710 63 0.61 1.8 4.0 2.0 56 1.80 YBX3-100L1-8 0.75 1 2.48 710 68.7 0.67 1.8 4.0 2.0 59 1.80 YBX3-100L2-8 1.1 1.5 3.53 710 70.7 0.67 1.8 4.0 2.0 59 1.80 YBX3-112M-8 1.5 2 4.41 710 72.8 0.71 1.8 5.5 2.0 59 1.80 YBX3-132S-8 2.2 3 6.04 710 77.9 0.71 1.8 6.0 2.0 61 1.80 YBX3-132M-8 3 4 7.91 710 78.9 0.73 1.8 6.0 2.2 64 1.80 YBX3-160M1-8 4 5.5 10.4/6.02 720 79.9 0.73 1.9 6.0 2.2 68 2.80 YBX3-160M2-8 5.5 7.5 13.8/8.0 720 82 0.74 1.9 6.0 2.2 68 2.80 YBX3-160L-8 7.5 10
18.1/10.4720 84 0.75 1.9 6.5 2.2 68 2.80 YBX3-180L-8 11 15 25.8/14.9 730 86.4 0.75 1.9 6.5 2.2 70 2.80 YBX3-200L-8 15 20 34.5/20 730 86.9 0.76 2.0 6.5 2.2 70 2.80 YBX3-225S-8 18.5 25 41.5/24 730 89.1 0.76 2.0 6.0 2.2 73 2.80 YBX3-225M-8 22 30
47.8/27.6730 89.6 0.78 2.0 6.5 2.2 73 2.80 YBX3-250M-8 30 40 63.8/36.9 730 90.4 0.79 1.9 6.5 2.0 73 3.5 YBX3-280S-8 37 50 78.3/45.2 740 90.9 0.79 1.8 6.5 2.0 75 3.5 YBX3-280M-8 45 60 94.7154.7 740 91.4 0.79 1.8 6.5 2.2 76 3.5 YBX3-315S-8 55 75 111.2 740 92.8 0.81 1.9 6.0 2.2 82 3.5 YBX3-315M-8 75 100 151.3 740 93.0 0.81 1.9 6.5 2.2 82 3.5 YBX3-315L1-8 90 125 177.8 740 93.8 0.82 1.9 6.5 2.2 82 3.5 YBX3-315L2-8 110 150 216.8 740 94.0 0.82 1.9 6.5 2.2 82 3.5 YBX3-355S-8 132 180 259.6 740 94.2 0.82 2.0 6.5 2.2 90 3.5 YBX3-355M-8 160 215 313.4 740 94.6 0.82 2.0 6.5 2.2 90 3.5 YBX3-355L1-8 185 250 362.3 740 94.6 0.82 2.0 6.5 2.2 90 3.5 YBX3-355L2-8 200 270 386.2 740 94.8 0.82 2.0 6.5 2.2 90 3.5 Synchronous speed600(r/min) YBX3-315S-10 45 60 99.1 585 92.0 0.75 1.5 6.0 2.1 82 3.5 YBX3-315M-10 55 75 121.2 585 92.0 0.75 1.5 6.0 2.1 82 3.5 YBX3-315L1-10 75 100 161.3 585 92.5 0.76 1.5 6.0 2.1 82 3.5 YBX3-315L2-10 90 125 190.8 585 93.0 0.77 1.5 6.0 2.1 82 3.5 YBX3-355S-10 110 150 229.8 585 93.0 0.77 1.5 6.6 2.1 82 3.5 YBX3-355M1-10 132 180 275.0 585 93.2 0.78 1.3 5.5 2.1 90 3.5 YBX3-355M2-10 160 215 333.4 585 93.5 0.78 1.3 5.5 2.1 90 3.5 YBX3-355L1-10 185 250 385.0 585 93.6 0.78 1.3 5.5 2.1 90 3.5 YBX3-355L2-10 200 270 415.2 585 93.6 0.78 1.3 5.5 2.1 90 3.5 YBX3(63-355) IM B3 INSTALLATION AND DIMENSIONS:
Models Extreme

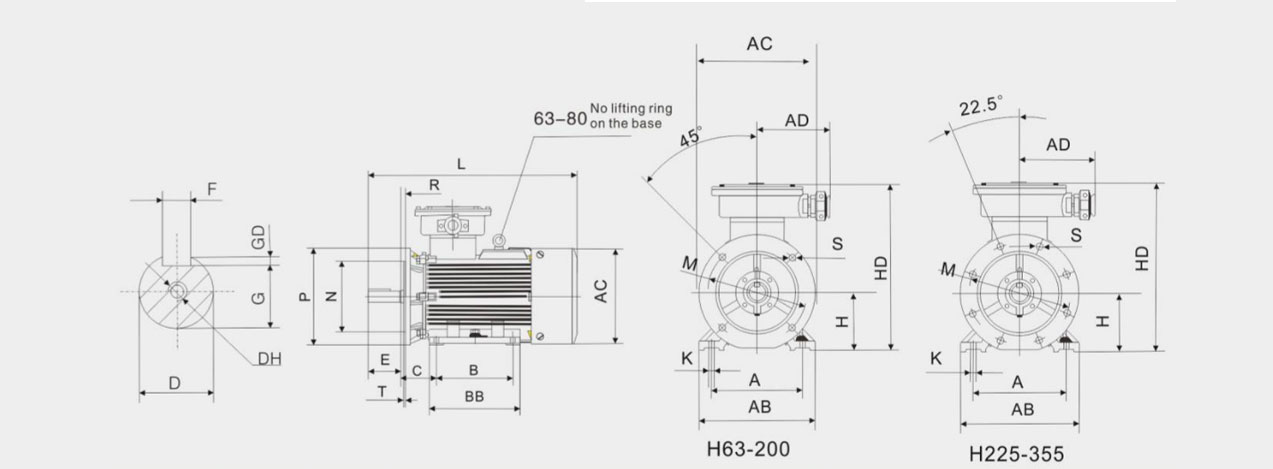

numbersInstallation dimensions External dimensions A B C D E F G GD H K AB AC AD BB HD L DH 63M 2.4 100 80 40 11 23 4 8.5 2.5 63 7 130 150 165 110 222 241 M4×10 71M 2.4.6 112 90 45 14 30 5 11 3 71 7 140 155 165 114 250 285 M5×12 80M 2.4.6.8 125 100 50 19 40 6 15.5 3.5 80 10 165 165 180 130 286 335 M6×16 90S 2.4.6.8 140 100 56 24 50 8 20 4 90 12 180 180 180 135 310 360 M8×19 90L 2.4.6.8 140 125 56 24 50 8 20 4 90 12 180 180 180 160 310 380 M8×19 100L 2.4.6.8 160 140 63 28 60 8 24 4 100 12 200 205 180 180 340 440 M10×22 112M 2.4.6.8 190 140 70 28 60 8 24 4 112 12 245 230 200 180 370 440 M10×22 132S 2.4.6.8 216 140 89 38 80 10 33 5 132 15 280 270 200 190 410 520 M12×28 132M 2.4.6.8 216 178 89 38 80 10 33 5 132 15 280 270 200 230 410 550 M12×28 160M 2.4.6.8 254 210 108 42 110 12 37 5 160 15 330 325 200 260 490 640 M16×36 160L 2.4.6.8 254 254 108 42 110 12 37 5 160 15 330 325 220 310 490 680 M16×36 180M 2.4.6.8 279 241 121 48 110 14 42.5 5.5 180 19 355 360 200 241 520 715 M16×36 180L 2.4.6.8 279 279 121 48 110 14 42.5 5.5 180 19 355 360 200 279 520 755 M16×36 200L 2.4.6.8 318 305 133 55 110 16 49 6 200 19 390 400 250 370 585 810 M20×42 225S 4.8 356 286 149 60 140 18 53 7 225 19 435 450 250 355 630 850 M20×42 225M 2 356 311 149 55 110 16 49 6 225 19 435 450 250 380 630 860 M20×42 4.6.8 356 311 149 60 140 18 53 7 225 19 435 450 250 380 630 890 M20×42 250M 2 406 349 168 60 140 18 53 7 250 24 490 500 300 420 715 970 M20×42 4.6.8 406 349 168 65 140 18 58 7 250 24 490 500 300 420 715 970 M20×42 280S 2 457 368 190 65 140 18 58 7 280 24 545 565 300 440 750 965 M20×42 4.6.8 457 368 190 75 140 20 67.5 7.5 280 24 545 565 300 440 750 965 M20×42 280M 2 457 419 190 65 140 18 58 7 280 24 545 565 300 480 750 950 M20×42 4.6.8 457 419 190 75 140 20 67.5 7.5 280 24 545 565 300 490 750 950 M20×42 315S 2 508 406 216 65 140 18 58 7 315 28 640 630 400 570 910 1250 M20×42 4.6.8.10 508 406 216 80 170 22 71 9 315 28 640 630 400 570 910 1250 M20×42 315M 2 508 457 216 65 140 18 58 7 315 28 640 630 400 680 910 1360 M20×42 4.6.8.10 508 457 216 80 170 22 71 9 315 28 640 630 400 680 910 1360 M20×42 315L 2 508 508 216 65 140 18 58 7 315 28 640 630 400 680 910 1400 M20×42 4.6.8.10 508 508 216 80 170 22 71 9 315 28 640 630 400 680 910 1400 M20×42 355S 2 610 500 254 75 140 20 67.5 7.5 355 28 740 750 500 640 1080 1415 M20×42 4.6.8.10 610 500 254 95 170 25 86 9 355 28 740 750 500 640 1080 1415 M24×50 355M 2 610 560 254 75 140 20 67.5 7.5 355 28 740 750 500 700 1080 1495 M20×42 4.6.8.10 610 560 254 95 170 25 86 9 355 28 740 750 500 700 1080 1495 M24×50 355L 2 610 630 254 75 140 20 67.5 7.5 355 28 740 750 500 770 1080 1645 M20×42 4.6.8.10 610 630 254 95 170 25 86 9 355 28 740 750 500 770 1080 1645 M24×50 YBX3(63-280)IM B5

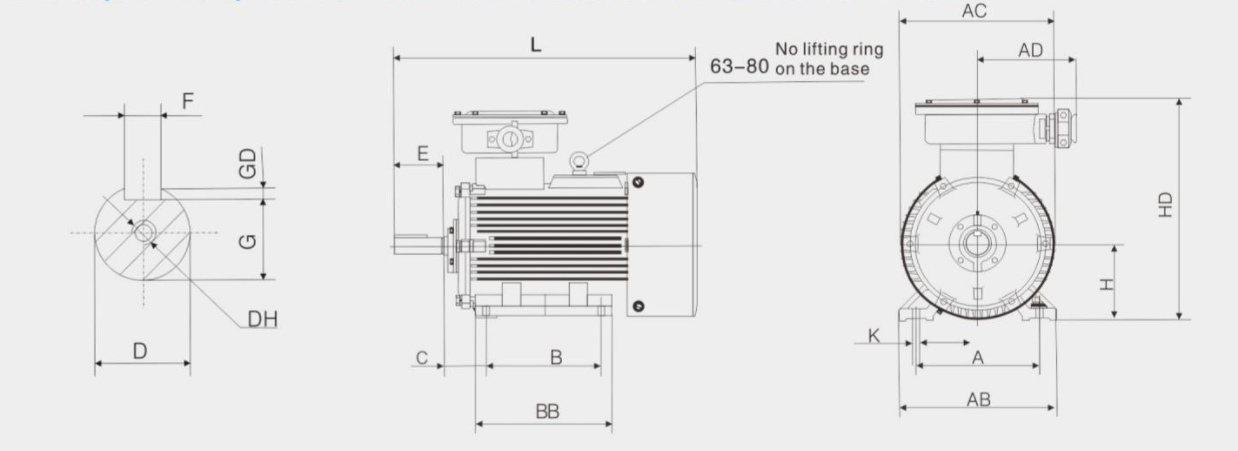

INSTALLATION AND DIMENSIONS:
Models Extreme

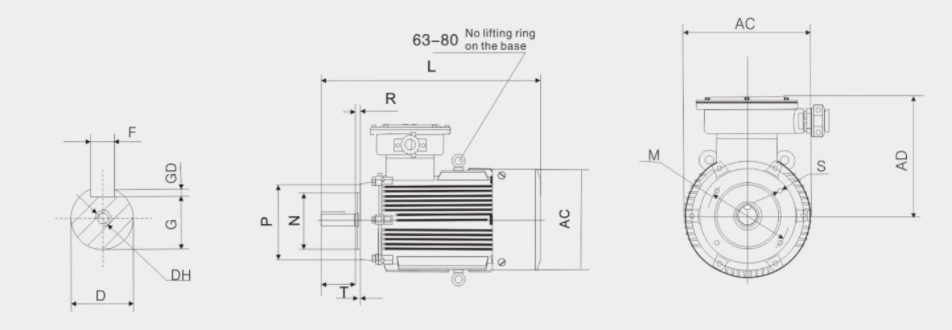

numbersInstallation dimensions Number of flange holes External dimensions D E F G GD M N P R S T AC AD L DH 63M 2.4 11 23 4 8.5 2.5 115 95 140 0 10 3 4 130 170 241 M4×10 71M 2.4.6 14 30 5 11 3 130 110 160 0 10 3 4 145 170 285 M5×12 80M 2.4.6.8 19 40 6 15.5 3.5 165 130 200 0 12 3.5 4 165 180 335 M6×16 90S 2.4.6.8 24 50 8 20 4 165 130 200 0 12 3.5 4 180 180 360 M8×19 90L 2.4.6.8 24 50 8 20 4 165 130 200 0 12 3.5 4 180 180 380 M8×19 100L 2.4.6.8 28 60 8 24 4 215 180 250 0 15 4 4 205 180 440 M10×22 112M 2.4.6.8 28 60 8 24 4 215 180 250 0 15 4 4 230 200 440 M10×22 132S 2.4.6.8 38 80 10 33 5 265 230 300 0 15 4 4 270 200 520 M12×28 132M 2.4.6.8 38 80 10 33 5 265 230 300 0 15 4 4 270 200 550 M12×28 160M 2.4.6.8 42 110 12 37 5 300 250 350 0 19 5 4 325 220 640 M16×36 160L 2.4.6.8 42 110 12 37 5 300 250 350 0 19 5 4 325 220 680 M16×36 180M 2.4.6.8 48 110 14 42.5 5.5 300 250 350 0 19 5 4 360 220 715 M16×36 180L 2.4.6.8 48 110 14 42.5 5.5 300 250 350 0 19 5 4 360 220 755 M16×36 200L 2.4.6.8 55 110 16 49 6 350 300 400 0 19 5 4 400 250 810 M20×42 225S 4.8 60 140 18 53 7 400 350 450 0 19 5 8 450 250 850 M20×42 225M 2 55 110 16 49 6 400 350 450 0 19 5 8 450 250 860 M20×42 4.6.8 60 140 18 53 7 400 350 450 0 19 5 8 450 250 890 M20×42 250M 2 60 140 18 53 7 500 450 550 0 19 5 8 500 300 970 M20×42 4.6.8 65 140 18 58 7 500 450 550 0 19 5 8 500 300 970 M20×42 280S 2 65 140 18 58 7 500 450 550 0 19 5 8 565 300 965 M20×42 4.6.8 75 140 20 67.5 7.5 500 450 550 0 19 5 8 565 300 965 M20×42 280M 2 65 140 18 58 7 500 450 550 0 19 5 8 565 300 995 M20×42 4.6.8 75 140 20 67.5 7.5 500 450 550 0 19 5 8 565 300 995 M20×42 YBX3(80-355)IM B35

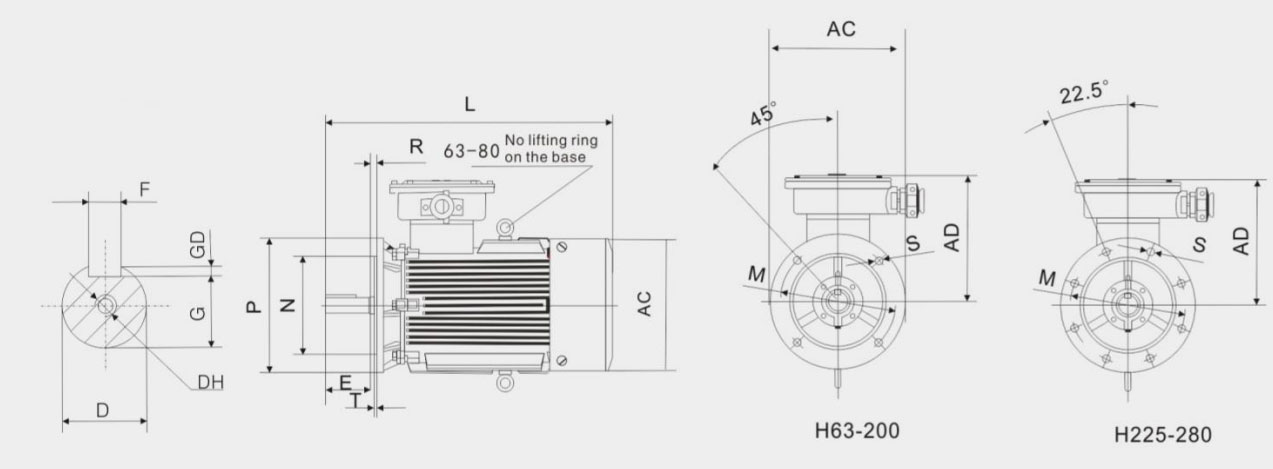

INSTALLATION AND DIMENSIONS:
Models Extreme
numbersInstallation dimensions Number
of flange holesExternal dimensions A B C D E F G GD H K M N P R S T AB AC AD BB HD L DH 80M 2.4.6.8 125 100 50 19 40 6 15.5 3.5 80 10 165 130 200 0 12 3.5 4 165 165 180 130 286 335 M6×16 90S 2.4.6.8 140 100 56 24 50 8 20 4 90 12 165 130 200 0 12 3.5 4 180 180 180 135 310 360 M8×19 90L 2.4.6.8 140 125 56 24 50 8 20 4 90 12 165 130 200 0 12 3.5 4 180 180 180 160 310 380 M8×19 100L 2.4.6.8 160 140 63 28 60 8 24 4 100 12 215 180 250 0 15 4 4 200 205 180 180 340 440 M10×22 112M 2.4.6.8 190 140 70 28 60 8 24 4 112 12 215 180 250 0 15 4 4 245 230 200 180 370 440 M10×22 132S 2.4.6.8 216 140 89 38 80 10 33 5 132 5 265 230 300 0 15 4 4 280 270 200 190 410 520 M12×28 132M 2.4.6.8 216 178 89 38 80 10 33 5 132 5 265 230 300 0 15 4 4 280 270 200 230 410 550 M12×28 160M 2.4.6.8 254 210 108 42 110 12 37 5 160 15 300 250 350 0 19 5 4 330 325 220 260 490 640 M16×36 160L 2.4.6.8 254 254 108 42 110 12 37 5 160 15 300 250 350 0 19 5 4 330 325 220 310 490 680 M16×36 180M 2.4.6.8 279 241 121 48 110 14 42.5 5.5 180 19 300 250 350 0 19 5 4 355 360 220 241 520 715 M16×36 180L 2.4.6.8 279 279 121 48 110 14 42.5 5.5 180 19 300 250 350 0 19 5 4 355 360 220 279 520 755 M16×36 200L 2.4.6.8 318 305 133 55 110 16 49 6 200 19 350 300 400 0 19 5 4 390 400 250 370 585 810 M20×42 225S 4.8 356 286 149 60 140 18 53 7 225 19 400 350 450 0 19 5 8 435 450 250 355 630 850 M20×42 225M 2 356 311 149 55 110 16 49 6 225 19 400 350 450 0 19 5 8 435 450 250 380 630 860 M20×42 4.6.8 356 311 149 60 140 18 53 7 225 19 400 350 450 0 19 5 8 435 450 250 380 630 890 M20×42 250M 2 406 349 168 60 140 18 53 7 250 24 500 450 550 0 19 5 8 490 500 300 420 715 970 M20×42 4.6.8 406 349 168 65 140 18 58 7 250 24 500 450 550 0 19 5 8 490 500 300 420 715 970 M20×42 280S 2 457 368 190 65 140 18 58 7 280 24 500 450 550 0 19 5 8 545 565 300 440 750 965 M20×42 4.6.8 457 368 190 75 140 20 67.5 7.5 280 24 500 450 550 0 19 5 8 545 565 300 440 750 965 M20×42 280M 2 457 419 190 65 140 18 58 7 280 24 500 450 550 0 19 5 8 545 565 300 490 750 995 M20×42 4.6.8 457 419 190 75 140 20 67.5 7.5 280 24 500 450 550 0 19 5 8 545 565 300 490 750 995 M20×42 315S 2 508 406 216 65 140 18 58 7 315 28 600 550 660 0 24 6 8 640 630 400 570 910 1250 M20×42 4.6.8.10 508 406 216 80 170 22 71 9 315 28 600 550 660 0 24 6 8 640 630 400 570 910 1250 M20×42 315M 2 508 457 216 65 140 18 58 7 315 28 600 550 660 0 24 6 8 640 630 400 680 910 1360 M20×42 4.6.8.10 508 457 216 80 170 22 71 9 315 28 600 550 660 0 24 6 88 640 630 400 680 910 1360 M20×42 315L 2 508 508 216 65 140 18 58 7 315 28 600 550 660 0 24 6 8 640 630 400 680 910 1400 M20×42 4.6.8.10 508 508 216 80 170 22 71 9 315 28 600 550 660 0 24 6 8 640 630 400 680 910 1400 M20×42 355S 2 610 500 254 75 140 20 67.5 7.5 355 28 740 680 800 0 24 6 8 740 750 500 640 1080 1415 M20×42 4.6.8.10 610 500 254 95 170 25 86 9 355 28 740 680 800 0 24 6 8 740 750 500 640 1080 1415 M24×50 355M 2 610 560 254 75 140 20 67.5 7.5 355 28 740 680 800 0 24 6 8 740 750 500 700 1080 1495 M20×42 4.6.8.10 610 560 254 95 170 25 86 9 355 28 740 680 800 0 24 6 8 740 750 500 700 1080 1495 M24×50 355L 2 610 630 254 75 140 20 67.5 7.5 355 28 740 680 800 0 24 6 8 740 750 500 770 1080 1645 M20×42 4.6.8.10 610 630 254 95 170 25 86 9 355 28 740 680 800 0 24 6 8 740 750 500 770 1080 1645 M24×50 YBX3(63-112)IM B14A INSTALLATION AND DIMENSIONS:
Models Extreme
numbersInstallation dimensions Number of flange holes External dimensions D E F G GD M N P R S T AC AD L DH 63M 2.4 11 23 4 8.5 2.5 75 60 90 0 M5 2.5 4 150 170 241 M4×12 71M 2.4.6 14 30 5 11 3 85 70 105 0 M6 2.5 4 155 170 285 M5×12 80M 2.4.6.8 19 40 6 15.5 3.5 100 80 120 0 M6 3 4 165 240 335 M6×16 90S 2.4.6.8 24 50 8 20 4 115 95 140 0 M8 3 4 180 260 360 M8×19 90L 2.4.6.8 24 50 8 20 4 115 95 140 0 M8 3 4 180 260 380 M8×19 100L 2.4.6.8 28 60 8 24 4 130 110 160 0 M8 3.5 4 205 300 440 M10×22 112M 2.4.6.8 28 60 8 24 4 130 110 160 0 M8 3.5 4 230 310 440 M10×22
