Detail display
- Technical parameter
-
- Commodity name: YBBP Explosion proof Variable Frequency Three Phase Asynchronous Motor B
YBBP TECHNICAL PARAMETERS:
Models Power
(Kw)Current
(A)Speed
(r/min)Efficiency
(%)Power factor
CoS
ØRated
torque
N.MConstant torque speed range
HzConstant power adjustment range
HzBlocking rotating current /Block rotation distance Block rotation distance /Rated rotation distance Maximum tuming disianee /Rated roiation
distanceSynchronous speed:3000(r/min) YBBP-80M1-2 0.75 1.83 2825 75.0 0.83 2.3 5-50 50-100 2.2 2.3 6.5 YBBP-80M2-2 1.1 2.55 2825 78.0 0.84 3.5 5-50 50-100 2.2 2.3 6.5 YBBP-90S-2 1.5 3.43 2840 79.0 0.84 4.7 5-50 50-100 2.2 2.3 8 YBBP-90L-2 2.2 4.85 2840 81.0 0.85 7 5-50 50-100 2.2 2.3 8 YBBP-100L-2 3 6.24 2880 83.0 0.88 9.5 5-50 50-100 2.2 2.3 8 YBBP-112M-2 4 8.13 2890 85.0 0.88 12.7 5-50 50-100 2.2 2.3 8 YBBP-132S1-2 5.5 11.04 2900 86.0 0.88 17.5 5-50 50-100 2.2 2.3 8 YBBP-132S2-2 7.5 14.88 2900 87.0 0.88 23.8 5-50 50-100 2.2 2.3 8 YBBP-160M1-2 11 21.5 2930 88.4 0.88 35 5-50 50-100 2.2 2.4 8 YBBP-160M2-2 15 28.6 2930 89.4 0.89 47.7 5-50 50-100 2.2 2.4 8 YBBP-160L-2 18.5 35.1 2930 90.0 0.89 58.8 5-50 50-100 2.2 2.4 8 YBBP-180M-2 22 41.0 2940 90.5 0.90 70 5-50 50-100 2 2.3 8 YBBP-200L1-2 30 55.4 2950 91.4 0.90 95.4 5-50 50-100 2 2.3 8 YBBP-200L2-2 37 67.9 2950 92.0 0.90 117.7 5-50 50-100 2 2.3 8 YBBP-225M-2 45 82.1 2970 92.5 0.90 143.2 5-50 50-100 2 2.3 8 YBBP-250M-2 55 99.8 2970 93.0 0.90 175 5-50 50-100 2 2.3 8 YBBP-280S-2 75 133.8 2970 93.6 0.91 238.7 5-50 50-100 2 2.3 8 YBBP-280M-2 90 160.0 2970 93.9 0.91 286.4 5-50 50-100 2 2.3 8 Synchronous speed:1500(r/min) YBBP-80M1-4 0.55 1.57 1390 71.0 0.75 3.5 5-50 50-100 2 2.8 9 YBBP-80M2-4 0.75 2.03 1390 73.0 0.77 4.7 5-50 50-100 2 2.8 9 YBBP-90S-4 1.1 2.85 1400 76.2 0.77 7 5-50 50-100 2 2.8 9 YBBP-90L-4 1.5 3.68 1400 78.5 0.79 9.5 5-50 50-100 2 2.8 9 YBBP-100L1-4 2.2 5.09 1420 81.0 0.81 14 5-50 50-100 2 2.8 9 YBBP-100L2-4 3 6.73 1420 82.6 0.82 19 5-50 50-100 2 2.8 9 YBBP-112M-4 4 8.80 1440 84.2 0.82 25.4 5-50 50-100 2 2.8 9 YBBP-132S-4 5.5 11.57 1440 86.0 0.84 35 5-50 50-100 2 2.8 9 YBBP-132M-4 7.5 15.41 1440 87.0 0.85 47.7 5-50 50-100 2 2.8 9 YBBP-160M-4 11 22.2 1460 88.4 0.85 70 5-50 50-100 2 2.8 9 YBBP-160L-4 15 30.0 1460 89.4 0.85 96 5-50 50-100 2 2.8 9 YBBP-180M-4 18.5 36.5 1460 90.5 0.85 117 5-50 50-100 2 2.8 9 YBBP-180L-4 22 43.1 1470 91.2 0.85 141 5-50 50-100 2 2.8 9 YBBP-200L-4 30 57.6 1470 92.0 0.86 191 5-50 50-100 2 2.8 9 YBBP-225S-4 37 69.9 1470 92.5 0.87 236 5-50 50-100 2 2.8 9 YBBP-225M-4 45 84.7 1480 92.8 0.87 286 5-50 50-100 2 2.8 9 YBBP-250M-4 55 103.3 1480 93.0 0.87 350 5-50 50-100 1.7 2.8 10 YBBP-280S-4 75 139.6 1480 93.8 0.87 478 5-50 50-100 1.7 2.8 10 YBBP-280M-4 90 166.9 1480 94.2 0.87 573 5-50 50-100 1.7 2.8 10 YBBP TECHNICALPARAMETERS:
Models Power
(Kw)Current
(A)Speed
(r/min)Efficiency
(%)Power factor CoS ø Rated torque
N.MConstant torque speed range
HzConstant power adjustment range
HzBlocking rotating current /Block rotation
distanceBlock rotation distance /Rated rotation
distanceMaximum turning distance /Rated rotation
distanceSynchronous speed:1000(r/min) YBBP-80M1-6 0.37 1.27 910 63.0 0.70 3.5 5-50 50-100 2.1 2.1 4.5 YBBP-80M2-6 0.55 1.76 910 66.0 0.72 5.2 5-50 50-100 2.1 2.1 4.5 YBBP-90S-6 0.75 2.29 910 69.0 0.72 7.1 5-50 50-100 2.1 2.1 4.5 YBBP-90L-6 1.1 3.14 910 73.0 0.73 10.5 5-50 50-100 2.1 2.1 5.5 YBBP-100L-6 1.5 3.95 940 76.0 0.76 14.3 5-50 50-100 2.1 2.1 5.5 YBBP-112M-6 2.2 5.57 940 79.0 0.76 21 5-50 50-100 2.1 2.1 5.5 YBBP-132S-6 3 7.31 960 81.0 0.77 28.6 5-50 50-100 2.1 2.4 6.5 YBBP-132M1-6 4 9.39 960 83.0 0.78 38.1 5-50 50-100 2.1 2.4 6.5 YBBP-132M2-6 5.5 12.6 960 85.0 0.78 52.5 5-50 50-100 2.1 2.4 7 YBBP-160M-6 7.5 16.8 970 86.0 0.79 71.6 5-50 50-100 2.1 2.4 7 YBBP-160L-6 11 24.2 970 87.5 0.79 105 5-50 50-100 2.1 2.4 7 YBBP-180L-6 15 31.6 970 89.0 0.81 143.2 5-50 50-100 2.1 2.1 7.5 YBBP-200L1-6 18.5 37.6 970 90.0 0.83 176.6 5-50 50-100 2.1 2.4 7.5 YBBP-200L2-6 22 44.7 970 90.0 0.83 210 5-50 50-100 2.1 2.4 7.5 YBBP-225M-6 30 57.6 980 92.0 0.86 286.4 5-50 50-100 2.1 2.4 7.5 YBBP-250M-6 37 71.1 980 92.0 0.86 353.3 5-50 50-100 2.1 2.4 7.5 YBBP-280S-6 45 85.9 980 92.5 0.86 429.7 5-50 50-100 2.1 2.4 7.5 YBBP-280M-6 55 104.7 980 92.8 0.86 525.1 5-50 50-100 2.1 2.2 7.5 Synchronous speed:750(r/min) YBBP-801-8 0.18 0.86 710 52.0 0.61 2.2 5-50 50-100 1.8 2 4.5 YBBP-802-8 0.25 1.13 710 55.0 0.61 3.1 5-50 50-100 1.8 2 4.5 YBBP-90S-8 0.37 1.44 710 63.0 0.62 4.7 5-50 50-100 1.8 2 4.5 YBBP-90L-8 0.55 2.07 710 64.0 0.63 7 5-50 50-100 1.8 2 4.5 YBBP-100L1-8 0.75 2.36 710 71.0 0.68 9.5 5-50 50-100 1.8 2 4.5 YBBP-100L2-8 1.1 3.32 710 73.0 0.69 14 5-50 50-100 1.8 2 4.5 YBBP-112M-8 1.5 4.40 710 75.0 0.69 19.1 5-50 50-100 1.8 2 4.5 YBBP-132S-8 2.2 5.80 710 79.0 0.73 28 5-50 50-100 1.8 2.2 5.5 YBBP-132M-8 3 7.71 710 81.0 0.73 38.2 5-50 50-100 1.8 2.2 5.5 YBBP-160M1-8 4 10.3 720 81.0 0.73 50.1 5-50 50-100 1.9 2.2 6.5 YBBP-160M2-8 5.5 13.4 720 83.0 0.75 70 5-50 50-100 1.9 2.2 6.5 YBBP-160L-8 7.5 17.6 720 85.0 0.76 95.5 5-50 50-100 1.9 2.2 6.5 YBBP-180L-8 11 25.3 730 87.0 0.76 140.1 5-50 50-100 1.9 2.2 6.5 YBBP-200L-8 15 33.7 730 89.0 0.76 191 5-50 50-100 1.9 2.2 7.2 YBBP-225S-8 18.5 40.0 730 90.0 0.78 235.5 5-50 50-100 1.9 2.2 7.2 YBBP-225M-8 22 47.4 730 90.5 0.78 280.1 5-50 50-100 1.9 2.2 7.2 YBBP-250M-8 30 63.4 730 91.0 0.79 382 5-50 50-100 1.9 2 7.2 YBBP-280S-8 37 77.8 740 91.5 0.79 471.1 5-50 50-100 1.8 2 7.2 YBBP-280M-8 45 94.1 740 92.0 0.79 573 5-50 50-100 1.8 2 7.2 YBBP(80-280)IM B35 INSTALLATION AND DIMENSIONS:

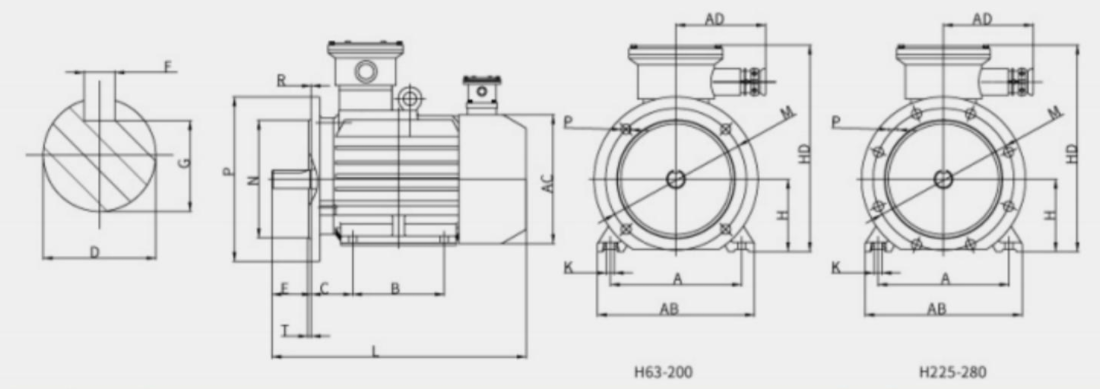

Models Extreme
numbersInstallation dimensions Number of flange holes External dimensions A B C D E G H K M N P R S T AB AC AD HD L 80M 2.4.6.8 125 100 50 19 40 6 15.5 80 10 165 130 200 0 12 3.5 4 165 165 180 286 400 90S 2.4.6.8 140 100 56 24 50 8 20 90 12 165 130 200 0 12 3.5 4 180 180 180 310 426 90L 2.4.6.8 140 125 56 24 50 8 20 90 12 165 130 200 0 12 3.5 4 180 180 180 310 455 100L 2.4.6.8 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 4 200 205 180 340 520 112M 2.4.6.8 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 4 245 230 200 370 545 132S 2.4.6.8 216 140 89 38 80 10 33 132 15 265 230 300 0 15 4 4 280 270 200 410 585 132M 2.4.6.8 216 178 89 38 80 0 33 132 15 265 230 300 0 15 4 4 280 270 200 410 615 160M 2.4.6.8 254 210 108 42 110 12 37 160 15 300 250 350 0 19 5 4 330 325 200 490 765 160L 2.4.6.8 254 254 108 42 110 12 37 160 15 300 250 350 0 19 5 4 330 325 200 490 790 180M 2.4.6.8 279 241 12 48 110 14 42.5 180 19 300 250 350 0 19 5 4 355 360 200 520 830 180L 2.4.6.8 279 279 121 48 110 14 42.5 180 19 300 250 350 0 19 5 4 355 360 200 520 850 200L 2.4.6.8 318 305 133 55 110 16 49 200 19 350 300 400 0 19 5 4 390 400 250 585 932 225S 4.8 356 286 149 60 140 18 53 225 19 400 350 450 0 19 5 8 435 450 250 630 965 225M 2 356 311 149 55 110 16 49 225 19 400 350 450 0 19 5 8 435 450 250 630 990 4.6.8 356 311 149 60 140 18 53 225 19 400 350 450 0 19 5 8 435 450 250 630 990 250M 2 406 349 168 60 110 18 53 250 24 500 450 550 0 19 5 8 490 500 300 715 1070 4.6.8 406 349 168 65 140 18 58 250 24 500 450 551 0 19 5 8 490 500 300 715 1070 280S 2 457 368 190 65 110 18 58 280 24 500 450 552 0 19 5 8 545 565 300 750 1140 4.6.8 457 368 190 75 140 20 67.5 280 24 500 450 553 0 19 5 8 545 565 300 750 1140 280M 2 457 419 190 65 110 18 58 280 24 500 450 554 0 19 5 8 545 565 300 750 1170 4.6.8 457 419 190 75 140 20 67.5 280 24 500 450 555 0 19 5 8 545 565 300 750 1170
