Detail display
- Technical parameter
-

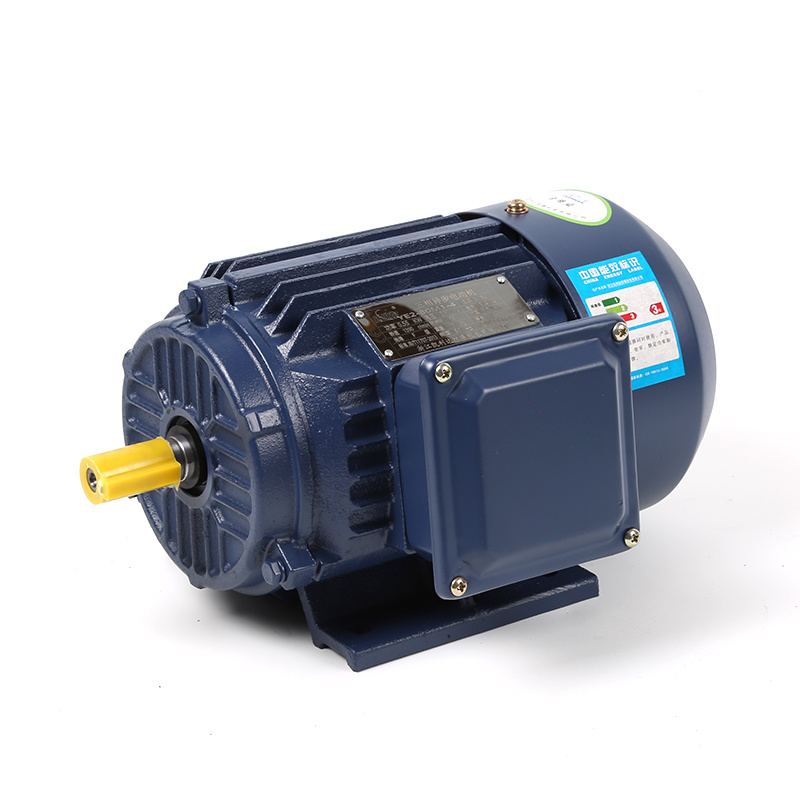

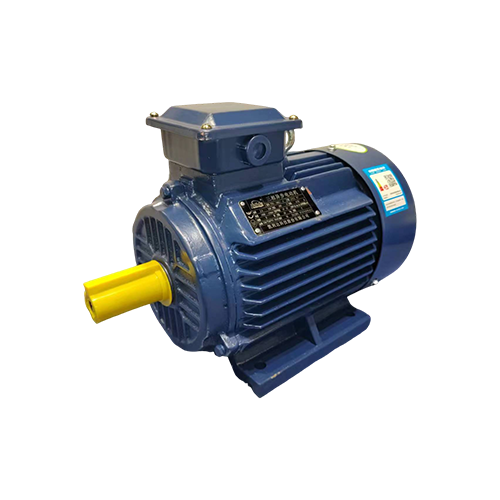

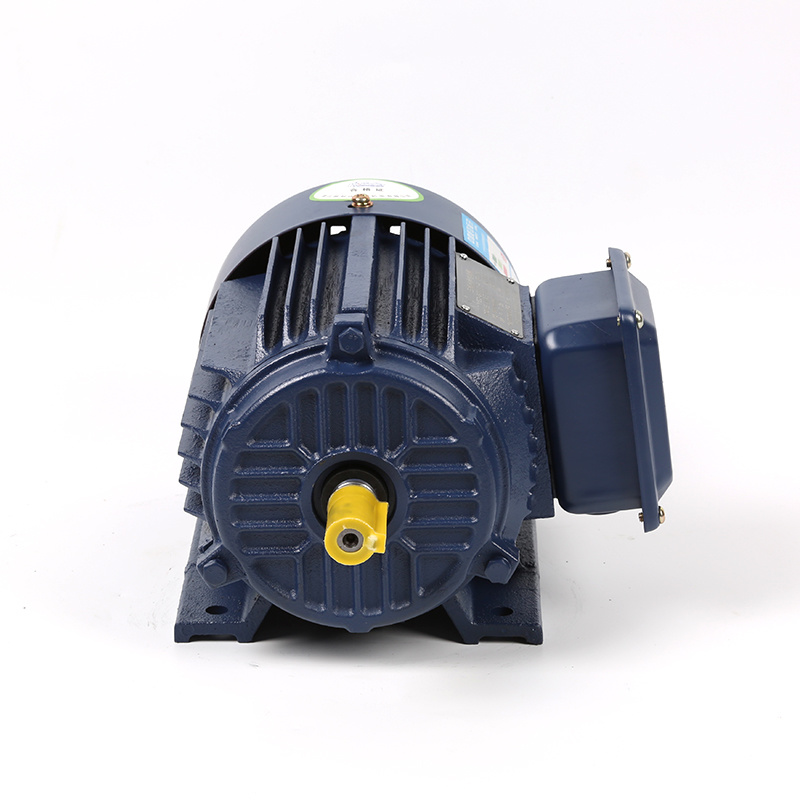

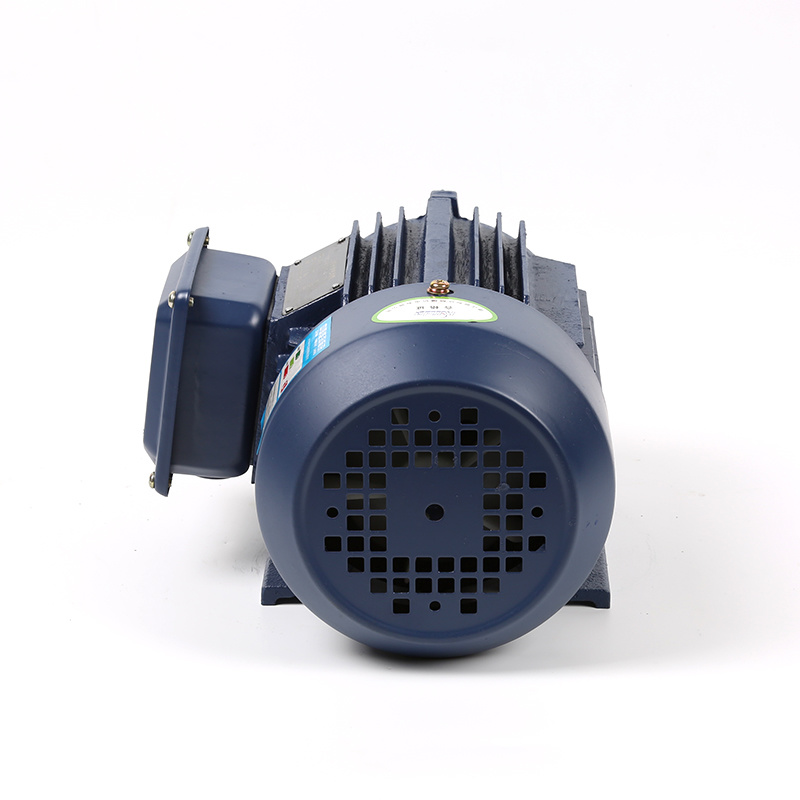

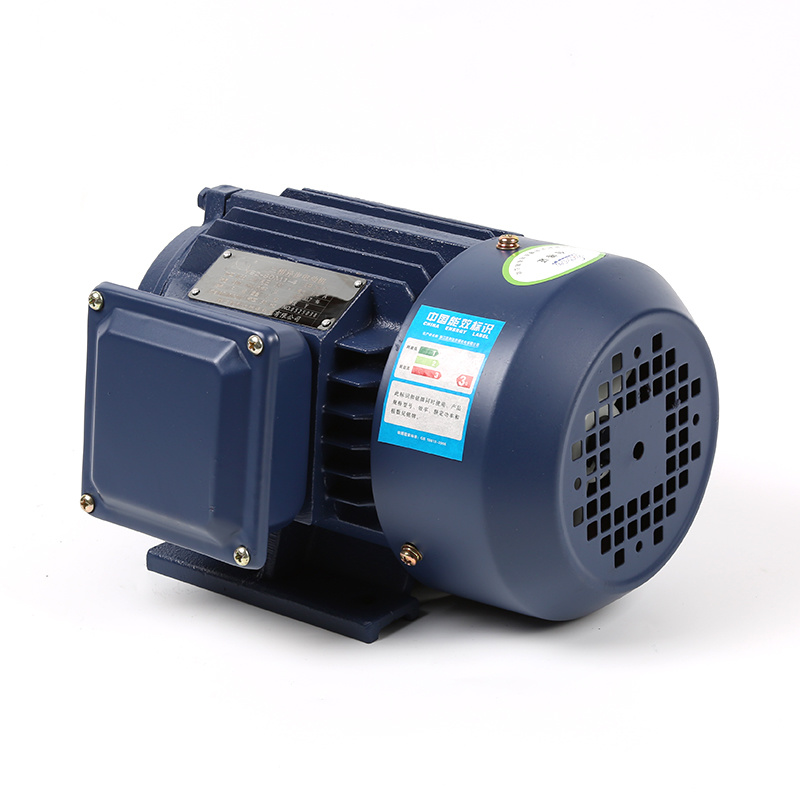

- Commodity name: YE3 High Efficiency Motor lEC Standard
Overview:
YE3 series three-phase induction motor is a series of products newly developed with new technology and new materialsIt is the upgrading product of y, Ye3 series motor. The series Ye3 motors are all made of cold-rolled silicon steel sheet,which is popular in the international motor industry, They are all enclosed and cold-type squirrel-cage structure withhigh efficiency (up to European EFf standard) , low noise and high torgue, good starting, compact structure, easy to useand maintenance and so on, The whole machine adopts Class F insulation and is desianed according to the insulationstructural evaluation method of international practice, thus improving the safety and reliability of the whole machineProtection level reached ip55, it has reached the advanced level of similar products abroad and is a new energy-savingproduct, Ye3 series motors can be widely used in machine tools, fans, pumps, reducer, compressors and transportationagricultural machinery, food processing, packaging and other mechanical transmission equipment.
Conditions of use:
Ambient temperature: -15°C~40°C
Altitude: not more than 1000m
Rated voltage: 380V, 400V, 415V, 440V, 660V
Rated frequency: 50Hz,60
Horking Method: S1
Connection method: Star Connection method for 3kw and below specifications, triangle connection method for 4kw and above specifications
Insulation Grade: F,winding temperature rise by 80K assessment
Protection Level: Ip5

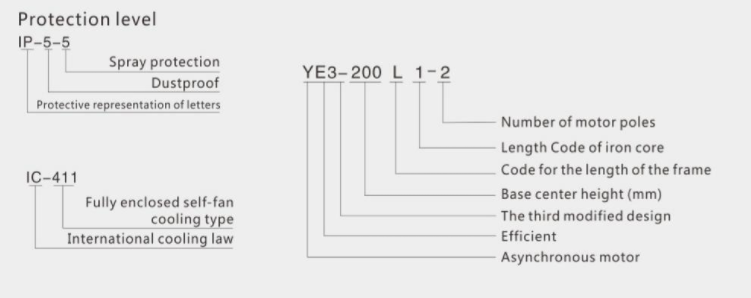

Cooling mode: IC411Code description:
YE3 TECHNICAL PARAMETERS:
Models Rated power Current (A) Speed (r/min) Efficiency % Power factor Cos∅ Blocking rotating current/Block rotation distance Block rotation distance/Rated rotation distance Maximum turning distance/Rated rotation distance Noise (dB) Vibration (mm/s) KW HP ynchronous speed:3000(r/min) YE3-63M1-2 0.18 0.24 0.52 2730 65.9 0.80 5.6 2.3 2.2 61 1.80 YE3-63M2-2 0.25 0.33 0.67 2730 69.7 0.81 5.6 2.3 2.2 61 1.80 YE3-71M1-2 0.37 0.5 0.94 2750 73.8 0.81 6.3 2.3 2.2 64 1.80 YE3-71M2-2 0.55 0.75 1.31 2790 77.8 0.82 6.3 2.3 2.3 64 1.80 YE3-80M1-2 0.75 1 1.72 2825 80.7 0.82 6.8 2.3 2.3 62 1.6 YE3-80M2-2 1.1 1.5 2.43 2825 82.7 0.83 7.3 2.3 2.3 62 1.6 YE3-90S-2 1.5 2 3.22 2840 84.2 0.84 7.6 2.3 2.3 67 1.6 YE3-90L-2 2.2 3 4.58 2840 85.9 0.85 7.8 2.3 2.3 67 1.6 YE3-100L-2 3 4 6.02 2880 87.1 0.87 8.1 2.3 2.3 74 1.6 YE3-112M-2 4 5.5 7.84 2890 88.1 0.88 8.3 2.3 2.3 77 1.6 YE3-132S1-2 5.5 7.5 10.6 2900 89.2 0.88 8 2.2 2.3 79 1.6 YE3-132S2-2 7.5 10 14.4 2900 90.1 0.88 7.8 2.2 2.3 79 2.2 YE3-160M1-2 11 15 20.6 2930 91.2 0.89 7.9 2.2 2.3 81 2.2 YE3-160M2-2 15 20 27.9 2930 91.9 0.89 8 2.2 2.3 81 2.2 YE3-160L-2 18.5 25 34.2 2930 92.4 0.89 8.1 2.2 2.3 81 2.2 YE3-180M-2 22 30 40.5 2940 92.7 0.89 8.2 2.2 2.3 83 2.2 YE3-200L1-2 30 40 54.9 2950 93.3 0.89 7.5 2.2 2.3 84 2.2 YE3-200L2-2 37 50 67.4 2950 93.7 0.89 7.5 2.2 2.3 84 2.2 YE3-225M-2 45 60 80.8 2970 94 0.9 7.6 2.2 2.3 86 2.2 YE3-250M-2 55 75 98.5 2970 94.3 0.9 7.6 2.2 2.3 89 2.2 YE3-280S-2 75 100 133.7 2970 94.7 0.9 6.9 2 2.3 91 2.2 YE3-280M-2 90 125 159.9 2970 95 0.9 7 2 2.3 91 2.8 YE3-315S-2 110 150 195.1 2980 95.2 0.9 7.1 2 2.2 92 2.8 YE3-315M-2 132 180 233.6 2980 95.4 0.9 7.1 2 2.2 92 2.8 YE3-315L1-2 160 215 279.4 2980 95.6 0.91 7.1 2 2.2 92 2.8 YE3-315L2-2 200 270 348.6 2980 95.8 0.91 7.1 2 2.2 92 2.8 YE3-355M-2 250 340 435.7 2980 95.8 0.91 7.1 2 2.2 100 2.8 YE3-355L-2 315 420 549 2980 95.8 0.91 7.1 2 2.2 100 1.6 Synchronous speed:1500(r/min) YE3-63M1-4 0.12 0.16 0.39 1320 64.8 0.72 4.5 2.3 2.2 52 1.8 YE3-63M2-4 0.18 0.24 0.54 1320 69.9 0.73 4.5 2.3 2.2 52 1.8 YE3-71M1-4 0.25 0.33 0.7 1350 73.5 0.74 5.3 2.3 2.2 55 1.8 YE3-71M2-4 0.37 0.5 0.97 1350 77.3 0.75 5.3 2.3 2.2 55 1.8 YE3-80M1-4 0.55 0.75 1.38 1390 80.8 0.75 6.3 2.3 2.3 56 1.6 YE3-80M2-4 0.75 1 1.84 1390 82.5 0.75 6.5 2.3 2.3 56 1.6 YE3-90S-4 1.1 1.5 2.61 1400 84.1 0.76 6.6 2.3 2.3 59 1.6 YE3-90L-4 1.5 2 3.47 1400 85.3 0.77 6.9 2.3 2.3 59 1.6 YE3-100L1-4 2.2 3 4.76 1420 86.7 0.81 7.5 2.3 2.3 64 1.6 YE3-100L2-4 3 4 6.34 1420 87.7 0.82 7.6 2.3 2.3 64 1.6 YE3-112M-4 4 5.5 8.37 1440 88.6 0.82 7.7 2.3 2.3 65 1.6 YE3-132S-4 5.5 7.5 11.2 1440 89.6 0.83 7.5 2 2.3 71 1.6 YE3-132M-4 7.5 10 15 1440 90.4 0.84 7.4 2 2.3 71 1.6 YE3-160M-4 11 15 21.5 1460 91.4 0.85 7.5 2.2 2.3 73 2.2 YE3-160L-4 15 20 28.7 1460 92.4 0.86 7.5 2.2 2.3 73 2.2 YE3-180M-4 18.5 25 35.3 1470 92.6 0.86 7.7 2.2 2.3 76 2.2 YE3-180L-4 22 30 41.8 1470 93 0.86 7.8 2.2 2.3 76 2.2 YE3-200L-4 30 40 56.6 1470 93.6 0.86 7.2 2.2 2.3 76 2.2 YE3-225S-4 37 50 69.6 1480 93.9 0.86 7.3 2.2 2.3 78 2.2 YE3-225M-4 45 60 84.4 1480 94.2 0.86 7.4 2.2 2.3 78 2.2 YE3-250M-4 55 75 102.7 1480 94.6 0.86 7.4 2.2 2.3 79 2.2 YE3-280S-4 75 100 136.3 1480 95 0.88 6.7 2.2 23 80 2.2 YE3 TECHNICAL PARAMETERS:
Models Rated power Current (A) Speed (r/min) Efficiency % Power factor Cos∅ Blocking rotating current/Rated rotation
distanceBlock rotation distance/Rated rotation distance Maximum turning distance/Rated rotation distance Noise (dB) Vibration (mm/s) KW HP Synchronous speed:1500(r/min) YE3-280M-4 90 125 163.2 1480 95.2 0.88 6.9 2.2 2.3 80 2.2 YE3-315S-4 110 150 196.8 1485 95.4 0.89 6.9 2.2 2.2 88 2.8 YE3-315M-4 132 180 235.7 1485 95.6 0.89 6.9 2.2 2.2 88 2.8 YE3-315L1-4 160 215 285.1 1485 95.8 0.89 6.9 2.2 2.2 88 2.8 YE3-315L2-4 200 270 351.7 1485 96.0 0.90 6.9 2.2 2.2 88 2.8 YE3-315M-4 250 340 439.6 1490 96.0 0.90 6.9 2.2 2.2 95 2.8 YE3-355L-4 315 420 553.9 1490 96.0 0.90 6.9 2.2 2.2 95 2.8 Synchronous speed:1000(r/min) YE3-71M1-6 0.18 0.24 0.65 865 63.9 0.66 4 2 2.1 52 1.8 YE3-71M2-6 0.25 0.33 0.81 865 68.6 0.68 4 2 2.1 52 1.8 YE3-80M1-6 0.37 0.35 1.09 865 73.5 0.7 4 2 2 54 1.7 YE3-80M2-6 0.55 0.75 1.5 870 77.2 0.72 4 2.1 2 55 1.7 YE3-90S-6 0.75 1 2.03 910 78.9 0.71 5.8 2.1 2.1 57 1.6 YE3-90L-6 1.1 1.5 2.83 910 81 0.73 5.9 2.1 2.1 57 1.6 YE3-100L-6 1.5 2 3.78 940 82.5 0.73 6 2.1 2.1 61 1.6 YE3-112M-6 2.2 3 5.36 940 84.3 0.74 6 2.1 2.1 65 1.6 YE3-132S-6 3 4 7.2 960 85.6 0.74 6.2 2 2.1 69 1.6 YE3-132M1-6 4 5.5 9.46 960 86.8 0.74 6.8 2 2.1 69 1.6 YE3-132M2-6 5.5 7.5 12.7 960 88 0.75 7.1 2 2.1 69 1.6 YE3-160M-6 7.5 10 16.2 970 89.1 0.79 6.7 2.1 2.1 70 2.2 YE3-160L-6 11 15 23.1 970 90.3 0.8 6.9 2.1 2.1 70 2.2 YE3-180L-6 15 20 30.9 970 91.2 0.81 7.2 2 2.1 73 2.2 YE3-200L1-6 18.5 25 37.8 970 91.7 0.81 7.2 2.1 2.1 73 2.2 YE3-200L2-6 22 30 44.8 970 92.2 0.81 7.3 2.1 2.1 73 2.2 YE3-225M-6 30 40 59.1 980 92.9 0.83 7.1 2 2.1 74 2.2 YE3-250M-6 37 50 71.7 980 93.3 0.84 7.1 2.1 2.1 76 2.2 YE3-280S-6 45 60 85.8 980 93.7 0.85 7.2 2.1 2 78 2.2 YE3-280M-6 55 75 103.3 980 94.1 0.86 7.2 2.1 2 78 2.2 YE3-315S-6 75 100 143.4 985 94.6 0.84 6.7 2 2 83 2.8 YE3-315M-6 90 125 169.5 985 94.9 0.85 6.7 2 2 83 2.8 YE3-315L1-6 110 150 206.8 985 95.1 0.85 6.7 2 2 83 2.8 YE3-315L2-6 132 180 244.5 985 95.4 0.86 6.7 2 2 83 2.8 YE3-355M1-6 160 215 295.7 990 95.6 0.86 6.7 2 2 85 2.8 YE3-355M3-6 200 270 364.6 990 95.8 0.87 6.7 2 2 85 2.8 YE3-355L2-6 250 340 455.7 990 95.8 0.87 6.7 2 2 85 2.8 YE3 TECHNICAL PARAMETERS:
Models Rated power Current (A) Speed (r/min) Efficiency % Power factor Block rotation distance/Rated rotation distance Blocking
rotating current/rated currentMaximum turning distance/Rated rotation distance Noise (dB) Vibration (mm/s) KW HP Synchronous speed:750(r/min) YE3-801-8 0.18 0.24 0.76 710 58.7 0.61 1.8 3.3 1.9 52 1.8 YE3-802-8 0.25 0.33 0.97 710 64.1 0.61 1.8 3.3 1.9 52 1.8 YE3-90S-8 0.37 0.5 1.33 710 69.3 0.61 1.8 4 2 56 1.8 YE3-90L-8 0.55 0.75 1.88 710 73 0.61 1.8 4 2 56 1.8 YE3-100L1-8 0.75 1 2.27 710 75 0.67 1.8 4 2 59 1.8 YE3-100L2-8 1.1 1.5 3.12 710 77.7 0.69 1.8 4 2 59 1.8 YE3-112M-8 1.5 2 4.09 710 79.7 0.7 1.8 5.5 2 59 1.8 YE3-132S-8 2.2 3 5.75 710 81.9 0.71 1.8 6 2 61 1.8 YE3-132M-8 3 4 7.48 710 83.5 0.73 1.8 6 2.2 64 1.8 YE3-160M1-8 4 5.5 9.82 720 84.8 0.73 1.9 6 2.2 68 2.8 YE3-160M2-8 5.5 7.5 13.1 720 86.2 0.74 1.9 6 2.2 68 2.8 YE3-160L-8 7.5 10 17.4 720 87.3 0.75 1.9 6.5 2.2 68 2.8 YE3-180L-8 11 15 25.2 730 88.6 0.75 1.9 6.5 2.2 70 2.8 YE3-200L-8 15 20 33.5 730 89.6 0.76 2 6.5 2.2 70 2.8 YE3-225S-8 18.5 25 41 730 90.1 0.76 2 6 2.2 73 2.8 YE3-225M-8 22 30 47.3 730 90.6 0.78 2 6.5 2.2 73 2.8 YE3-250M-8 30 40 63.2 730 91.3 0.79 1.9 6.5 2 73 3.5 YE3-280S-8 37 50 77.5 740 91.8 0.79 1.8 6.5 2 75 3.5 YE3-280M-8 45 60 93.9 740 92.2 0.79 1.8 6.5 2.2 76 3.5 YE3-315S-8 55 75 111.5 740 92.5 0.81 1.9 6 2.2 82 3.5 YE3-315M-8 75 100 151.1 740 93.1 0.81 1.9 6.5 2.2 82 3.5 YE3-315L1-8 90 125 178.5 740 93.4 0.82 1.9 6.5 2.2 82 3.5 YE3-315L2-8 110 150 217.5 740 93.7 0.82 1.9 6.5 2.2 82 3.5 YE3-355S-8 132 180 260.2 740 94 0.82 2 6.5 2.2 90 3.5 YE3-355M-8 160 215 314.4 740 94.3 0.82 2 6.5 2.2 90 3.5 YE3-355L1-8 185 250 362.3 740 94.6 0.83 2 6.5 2.2 90 3.5 YE3-355L2-8 200 270 387 740 94.8 0.83 2 6.5 2.2 90 3.5 Synchronous speed:600(r/min) YE3-315S-10 45 60 99.1 585 92 0.75 1.5 6 2.1 82 3.5 YE3-315M-10 55 75 121.1 585 92 0.75 1.5 6 2.1 82 3.5 YE3-315L1-10 75 100 161.6 585 92.8 0.76 1.5 6 2.1 82 3.5 YE3-315L2-10 90 125 191 585 93 0.77 1.5 6 2.1 82 3.5 YE3-355S-10 110 150 229.7 585 93.3 0.78 1.5 6.6 2.1 82 3.5 YE3-355M1-10 132 180 274.1 585 93.8 0.78 1.3 5.5 2.1 90 3.5 YE3-355M2-10 160 215 332.3 585 93.8 0.78 1.3 5.5 2.1 90 3.5 YE3-355L1-10 185 250 385 585 93.6 0.78 1.3 5.5 2.1 90 3.5 YE3-355L2-10 200 270 415.2 585 93.6 0.78 1.3 5.5 2.1 90 3.5 YE3 SERIES(63-355)INSTALLATION AND DIMENSIONS:
Notes:
1、B3Installation and external dimensions in the B35, only need to view the flange end overpart, so B3 sketc
2、Flange cap flange FF numbermeans through-hole mounting hole (large flange): FT represents screw-hole mounting hole (smallflange).
3、For the sake of clearillustration, flange number FF and flange number FT correlation mark position is the same,but the proportion is different two kinds of flange with a graphic,size please check the table carefully.
Models Extreme
numbersInstallation dimensions of the general part Flange end cap portion Flange end cap portion External dimensions A B C D E F G H K R Number
of flang
holesB5 B35 V1 B14 B34 V1 AB AC HD AD V1 L V1 Flang number M N P S(Through T FHuanoer M N P S(Screw
Hole)T (HF) L YE3-63M 2,4 100 80 40 11 23 4 8.5 63 7 0 4 Ff115 115 95 140 10 3 FT75 75 60 90 M5 2.5 135 130 130 70 230 YE3-71M 2,4,6 112 90 45 14 30 5 11 71 7 0 4 FF135 135 100 160 10 3.5 FT85 85 70 105 M6 2.5 150 145 195 80 195 YE3-80M 2,4,6,8 125 100 50 19 40 6 15.5 80 10 0 4 FF165 165 130 200 12 3.5 FT100 100 80 120 M6 3.0 165 175 200 120 290 YE3-90S 2,4,6,8 140 100 56 24 50 8 20 90 10 0 4 FF165 165 130 200 12 3.5 FT115 115 95 140 M8 3.0 180 195 250 160 305 YE3-90L 2,4,6,8 140 125 56 24 50 8 20 90 10 0 4 FF165 165 130 200 12 3.5 FT115 115 95 140 M8 3.0 180 195 250 160 355 YE3-100L 2,4,6,8 160 140 63 28 60 8 24 100 12 0 4 FF215 215 180 250 15 4 FT130 130 110 160 M8 3.5 205 215 250 150 385 YE3-112M 2,4,6,8 190 140 70 28 60 8 24 112 12 0 4 FF215 215 180 250 15 4 FT130 130 110 160 M8 3.5 230 240 262 150 400 YE3-132S 2,4,6,8 216 140 89 38 80 10 33 132 12 0 4 FF265 265 230 300 15 4 270 275 312 180 475 YE3-132M 2,4,6,8 216 178 89 38 80 10 33 132 12 0 4 FF265 265 230 300 15 4 270 275 312 180 515 YE3-160M 2,4,6,8 254 210 108 42 110 12 37 160 15 0 4 FF300 300 250 350 19 5 320 330 410 250 660 YE3-160L 2,4,6,8 254 254 108 42 110 12 37 160 15 0 4 FF300 300 250 350 19 5 320 330 410 250 705 YE3-180M 2,4,6,8 279 241 121 48 110 14 42.5 180 15 0 4 FF300 300 250 350 19 5 355 380 435 255 500 685 760 YE3-180L 2,4,6,8 279 279 121 48 110 14 42.5 180 15 0 4 FF300 300 250 350 19 5 355 380 435 255 500 723 800 YE3-200L 2,4,6,8 318 305 133 55 110 16 49 200 19 0 4 FF350 350 300 400 19 5 395 420 490 290 550 770 840 YE3-225S 4,8 356 286 149 60 140 18 53 225 19 0 8 FF400 400 350 450 19 5 435 470 545 320 610 805 905 YE3-225M 2 356 311 149 55 110 16 49 225 19 0 8 FF400 400 350 450 19 5 435 470 545 320 610 860 910 4,6,8 356 311 149 60 140 18 53 225 19 0 8 FF400 400 350 450 19 5 435 470 545 320 610 860 935 YE3-250M 2 406 349 168 60 140 18 53 250 24 0 8 FF500 500 450 550 19 5 490 510 620 370 650 950 1015 4,6,8 406 349 168 65 140 18 58 250 24 0 8 FF500 500 450 550 19 5 490 510 620 370 650 950 1015 YE3-280S 2 457 368 190 65 140 18 58 280 24 0 8 FF500 500 450 550 19 5 550 580 670 390 720 985 1110 4,6,8 457 368 190 75 140 20 67.5 280 24 0 8 FF500 500 450 550 19 5 550 580 670 390 720 985 1110 YE3-280M 2 457 419 190 65 140 18 58 280 24 0 8 FF500 500 450 550 19 5 550 580 670 390 720 1036 1150 4,6,8 457 419 190 75 140 20 67.5 280 24 0 8 FF500 500 450 550 19 5 550 580 670 390 720 1036 1150 YE3-315S 2 508 406 216 65 140 18 58 315 28 0 8 FF600 600 550 660 24 6 635 645 845 530 900 1160 1280 4,6,8,10 508 406 216 80 170 22 71 315 28 0 8 FF600 600 550 660 24 6 635 645 845 530 900 1270 1400 YE3-315M 2 508 457 216 65 140 18 58 315 28 0 8 FF600 600 550 660 24 6 635 645 845 530 900 1190 1310 4,6,8,10 508 457 216 80 170 22 71 315 28 0 8 FF600 600 550 660 24 6 635 645 845 530 900 1300 1430 YE3-315L 2 508 508 216 65 140 18 58 315 28 0 8 FF600 600 550 660 24 6 635 645 845 530 900 1190 1310 4,6,8,10 508 508 216 80 170 22 71 315 28 0 8 FF600 600 550 660 24 6 635 645 845 530 900 1300 1430 YE3-355M 2 610 560 254 75 140 20 67.5 355 28 0 8 FF740 740 680 800 24 6 730 710 1010 655 1010 1500 1640 4,6,8,10 610 560 254 95 170 25 86 355 28 0 8 FF740 740 680 800 24 6 730 710 1010 655 1010 1530 1640 YE3-355L 2 610 630 254 75 140 20 67.5 355 28 0 8 FF740 740 680 800 24 6 730 710 1010 655 1010 1500 1640 4,6,8,10 610 630 254 95 170 25 86 355 28 0 8 FF740 740 680 800 24 6 730 710 1010 655 1010 1530 1670
