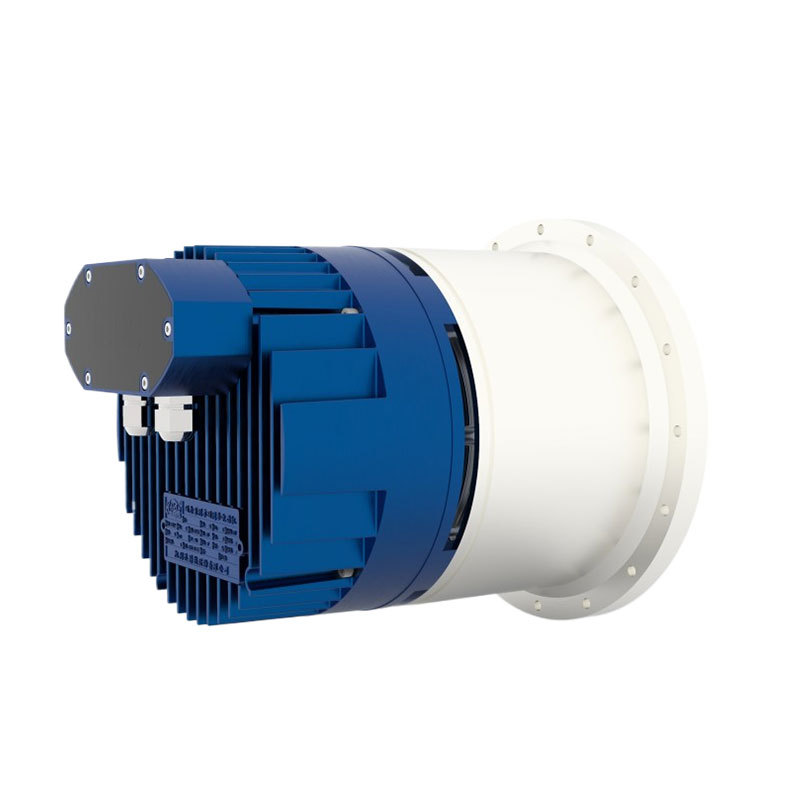

- Commodity name: Magnetic pump dedicated permanent magnet motor
Overview of permanent magnet synchronous motors for magnetic pumps:

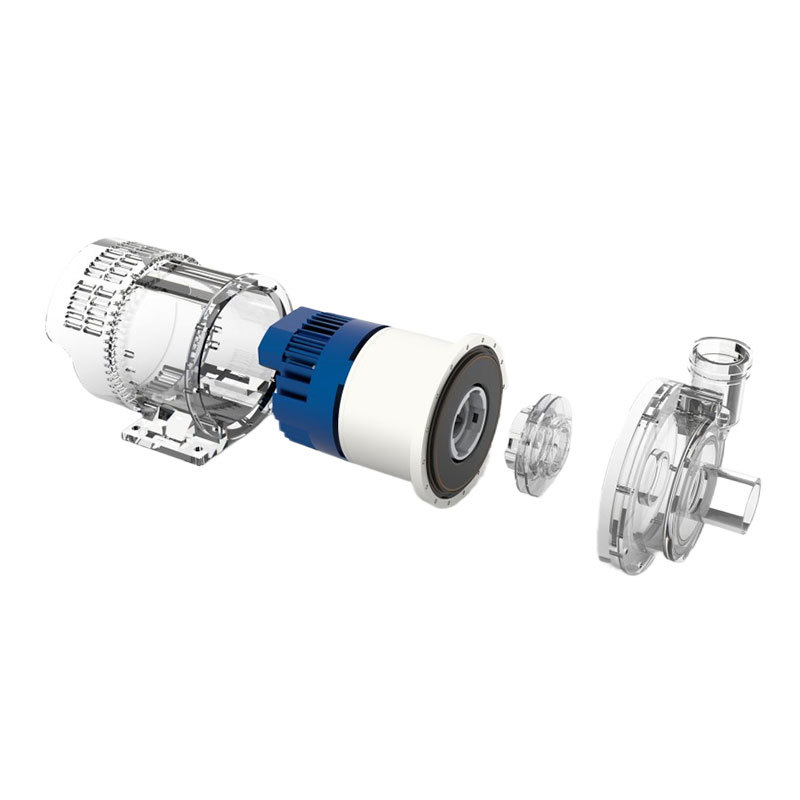

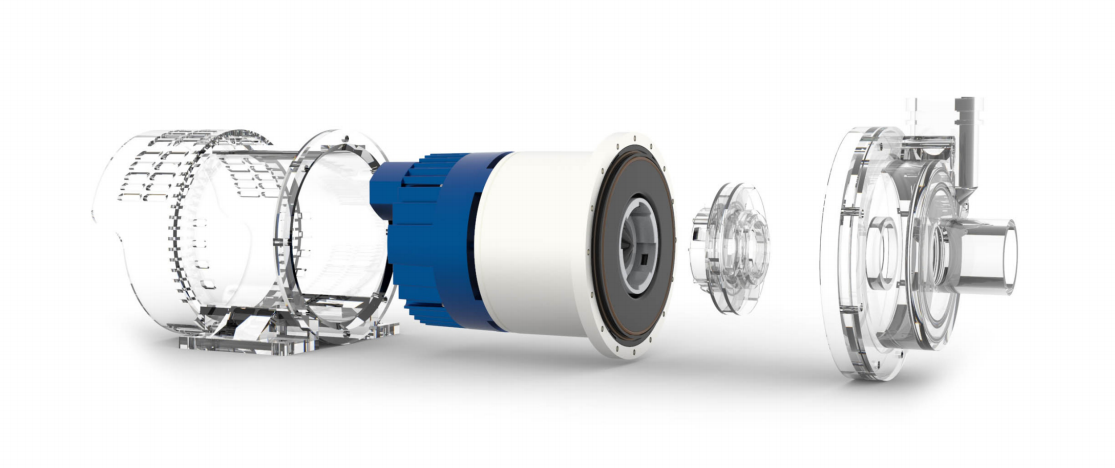

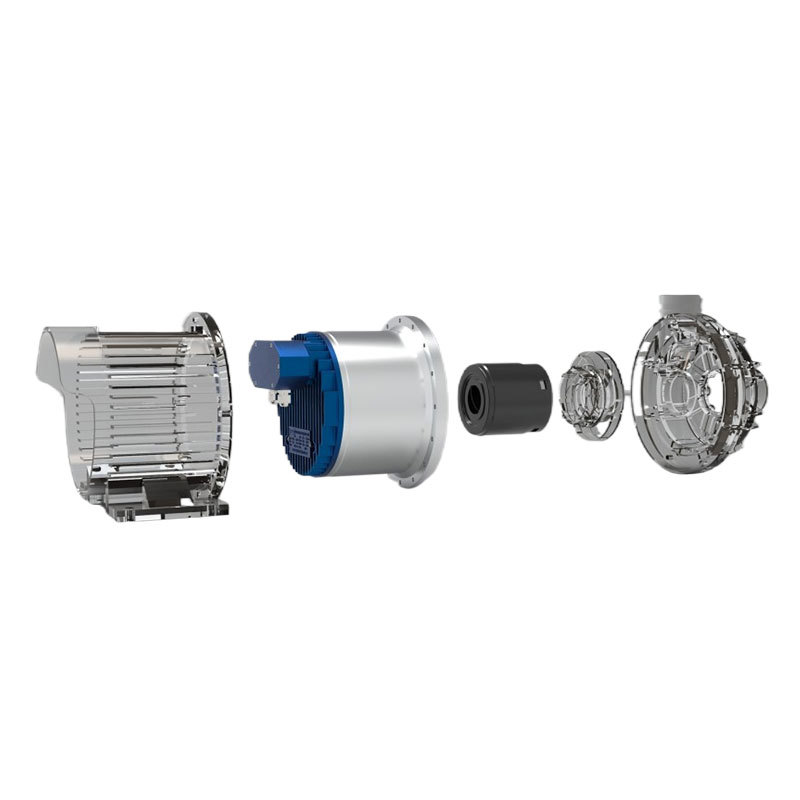

Overview of Permanent Magnet Synchronous Motor for Magnetic Pump: Permanent magnet synchronous motor for magnetic pump is a revolutionary product specially tailored for magnetic pump manufacturers, which simplifies the original magnetic pump. Its structure consists of stator unit, rotor unit, and controller part, saving unnecessary energy efficiency loss, material waste, and manual loss of the original magnetic pump. Truly achieving ultra-high efficiency, high power density, simple structure, and easy installation. And this motor is equipped with intelligent control and other functions, making it more convenient for users to control and use.
20 advantages of using all-in-one machines:
1. High efficiency and energy saving: achieve national first level energy efficiency and international IE5.
2. Anti no-load operation: The motor will automatically stop after 10 seconds of no-load operation to ensure that the bearings will not be damaged.
3. Precise debugging: infinitely variable speed, real-time feedback, closed-loop drive.
4. Soft start: protect the impeller, soft start to prevent low voltage.
5. High power factor: Ultra high power factor improves the utilization rate of the power grid.
6. Strong overload capacity: 3 times the short-term overload capacity.
7. Low noise: Non sensitive and ultra quiet operation.
8. Intelligence (interconnection, remote control): Remote control, wireless control, real-time monitoring.
9. Adaptable to harsh environments: Suitable for operation in strong acid and alkali environments, with a WF2 protective shell.
10. Wide voltage and wide frequency: Input voltage range 340V-460V, input frequency range 45Hz-65Hz.
11. Overload protection: If the motor is overloaded for more than 30 seconds, the controller will automatically sound an alarm.
12. Under voltage protection: If the input voltage falls below the minimum range, the controller will stop running.
13. Overheating protection: Motor overheating or bearing overheating protection ensures that the machine will not burn out.
14. Overcurrent protection: If the current exceeds 1.2 times the rated current, it will stop running.
15. Motor fault protection: If the motor fails, the controller will provide a fault code and stop running.
16. Phase loss protection: The controller stops running when there is a phase loss.
17. Stall protection: When the motor speed cannot be controlled, the controller will alarm and stop running.
18. Reverse protection: The motor output direction is consistent.
19. Anti interference protection: It is not affected by interference signals in the environment.
20. Backup pump start: When this pump fails, the backup pump can be started directly without personnel control.
Motor parameters>
Specification and model Rated power
(kw)Rated speed
(r/min)Efficiency
(%)Power factor
(Cos Ø)Number of poles Rated voltage
(v)Rated frequency
(Hz)Insulation level Service factor DTPM80-0.25KW 0.25 3000 78.3 0.98 8 380 200 F 1.2 DTPM80-0.37KW 0.37 3000 81.7 0.98 8 380 200 F 1.2 DTPM80-0.55KW 0.55 3000 87.3 0.98 8 380 200 F 1.2 DTPM100-0.75KW 0.75 3000 88.6 0.98 8 380 200 F 1.2 DTPM100-1.1KW 1.1 3000 89.8 0.98 8 380 200 F 1.2 DTPM100-1.5KW 1.5 3000 90.9 0.97 8 380 200 F 1.2 DTPM132-1.5KW 1.5 3000 90.9 0.97 8 380 200 F 1.2 DTPM132-2.2KW 2.2 3000 91.8 0.97 8 380 200 F 1.2 DTPM132-3.0KW 3.0 3000 92.6 0.97 8 380 200 F 1.2 DTPM132-4.0KW 4.0 3000 93.3 0.95 8 380 200 F 1.2 DTPM160-5.5KW 5.5 3000 94.0 0.95 8 380 200 F 1.2 DTPM160-7.5KW 7.5 3000 94.5 0.95 8 380 200 F 1.2 DTPM160-11KW 11 3000 95.0 0.95 8 380 200 F 1.2 DTPM180-11KW 11 3000 95.0 0.95 8 380 200 F 1.2 DTPM180-15KW 15 3000 95.3 0.94 8 380 200 F 1.2 DTPM180-18.5KW 18.5 3000 95.6 0.93 8 380 200 F 1.2 DTPM180-22KW 22 3000 95.9 0.93 8 380 200 F 1.2
