Detail display
- Technical parameter
-

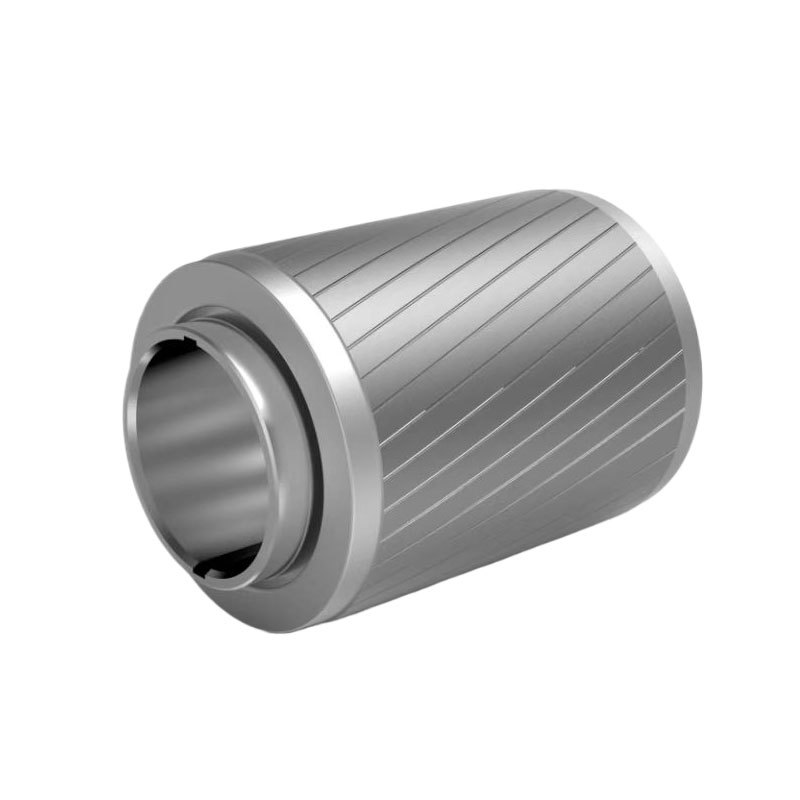

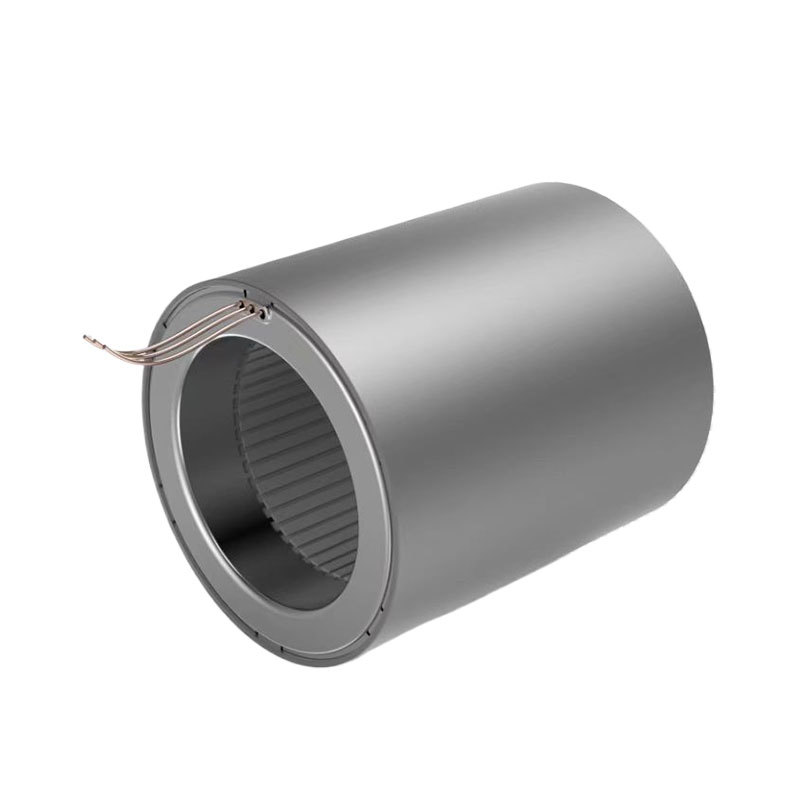

- Commodity name: Spindle split motor
Functional Features:
Power range: 4-18.5Kw
Vibration level: R level
Rated speed: 1000, 1500rpm
Environmental temperature: -30 ° C to 40 ° C
Maximum speed: 3000-4000rpm
Environmental humidity: Relative humidity below 80%
Insulation level: F level
Noise:< 70dB(A)Technical Parameter:

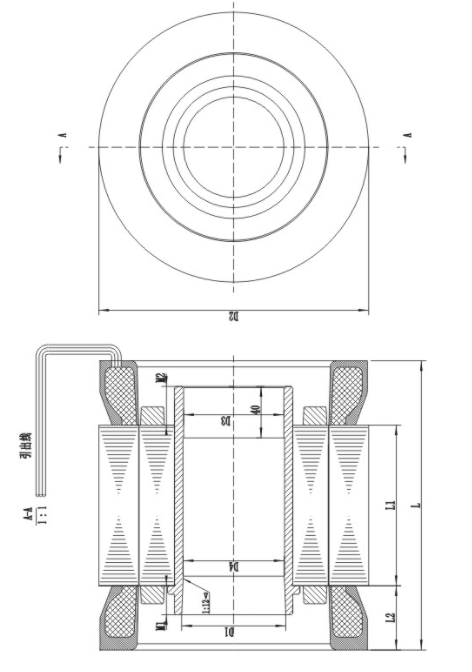

Model Power L L1 L2 L3 D1 D2 Lead wire KLDDZ-183S-4 3 155 75 40 135 50 183 1.0*3*2 m KLDDZ-183M-4 4 180 100 40 160 50 183 1.5*3*2 m KLDDZ-183L-4 5.5 220 140 40 200 50 183 2.5*3*2 m KLDDZ-218S-4 5.5 190 90 50 150 78 218 2.5*3*2 m KLDDZ-218M-4 7.5 225 125 50 185 78 218 2.5*3*2 m KLDDZ-218L-4 11 260 160 50 220 88 218 4.0*3*2 m KLDDZ-270S-6 11 220 120 50 180 100 270 4.0*3*2 m KLDDZ-270M-6 15 265 165 50 225 100 270 6.0*3*2 m KLDDZ-270L-6 18.5 305 205 50 265 100 270 10*3*2 m Model Rated power Rotational speed
(RPM)Rated voltage (V) Electric current
(A)Torque
(Nm)Maximum torque
(Nm)S1 (Kw) S3 (Kw) Rated speed Maximum constant power speed Maximum mechanical speed S1 Working system S3 Working system S1 Working system S3 Working system KLDDZ-183S-4 1.5 3 1500 4000 5000 380 3.6 6.4 9.55 19.1 57 KLDDZ-183M-4 2.2 4 1500 4000 5000 380 4.8 8.4 14 25.4 76 KLDDZ-183L-4 3 5.5 1500 4000 5000 380 6.4 11.8 19.1 35 10 KLDDZ-218S-4 3 5.5 1500 4000 5000 380 6.2 11.6 19.1 35 105 KLDDZ-218M-4 4 7.5 1500 4000 5000 380 8.4 15.5 25.4 47.7 140 KLDDZ-218L-4 5.5 11 1500 4000 5000 380 11.6 22.4 35 70 210 KLDDZ-270S-6 5.5 11 1000 3000 4000 380 12.7 23.9 52.5 105 315 KLDDZ-270M-6 7.5 15 1000 3000 4000 380 16.4 30.8 71.5 143 430 KLDDZ-270L-6 11 18.5 1000 3000 4000 380 23.5 37.8 105 176 525
